BITUBO shock absorber for Suzuki GSR600 06-

Product details

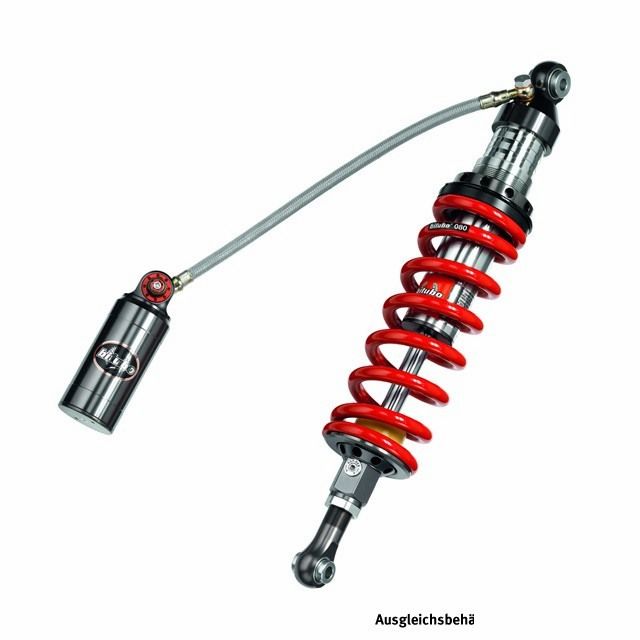

BITUBO rear shock absorber, with externa balance tank, adjustable rebound damping, adjustable compression damping in high- and low-speed, 8mm length adjustable, continuously adjustable spring preload, red spring colour; for Suzuki GSR600 Type: WVB9 (from model year '06-)

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sports motorcycles. It is a gas-pressure supported shock absorber, with a separating piston for oil / nitrogen in the balance tank, Ø16mm piston with anti-friction coating and friction-minimised bushing. The lower and upper mounting are made from an aluminium alloy, as used in aviation - precisely CNC machined. The setting of the spring preload is hydraulic and can be done either manually or with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the spring colour: "1" stands for a red spring, while shock absorbers ending in "2" have a black spring. For example, the shock absorber "CLU11" has a red spring, and "CLU12" consequently has a black one.

Features CLU1:
- Low-speed compression damping: 24 clicks
- High-speed compression damping: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously
- Adjustable length: 8 mm
