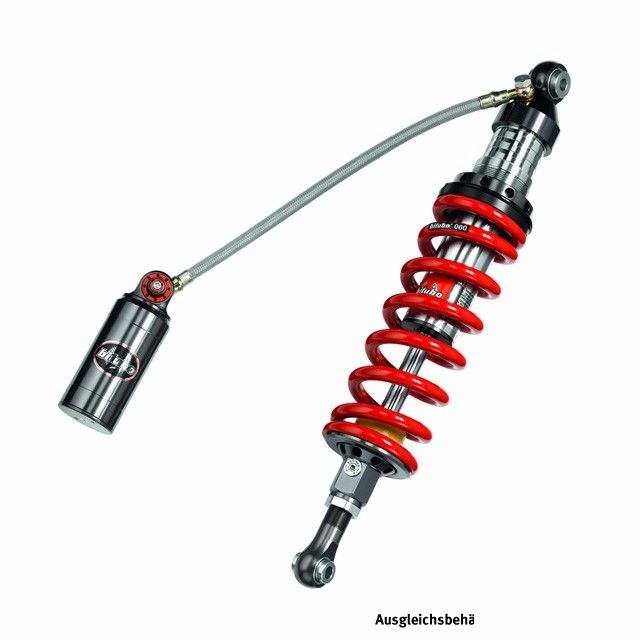

BITUBO shock absorber for Suzuki Bandit 1250S/SA 07-

Product Details

BITUBO Mono shock absorber rear, with externa balance tank, adjustable rebound damping, adjustable compression damping damping in high and low speed, length adjustable 8mm, spring preload continuously adjustable, red spring colour; for Suzuki Bandit 1250S/SA Type: WVCH (from model year ´07-)

General Description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. It is a gas-assisted shock absorber, with a separating piston for oil/nitrogen in the balance tank, Ø16mm piston with anti-friction coating and friction-minimised bushing. The lower and upper mounting are made of an aluminium alloy, as used in aerospace – precisely CNC machined. The setting of the spring preload is hydraulic and can be done manually or with a 14 mm HH screw.

The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers ending in “2” have a black spring. For example, the shock absorber “CLU11” has a red spring, and “CLU12” consequently has a black one.

CLU1 Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
