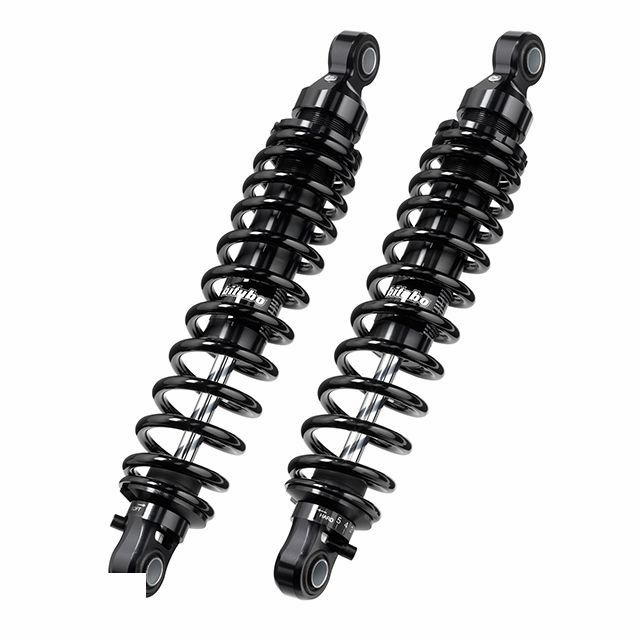

BITUBO shock absorber for Moto Guzzi NTX350 and NTX650 LB and NTX750

Product details

BITUBO stereo shock absorbers rear, spring preload and rebound damping adjustable; Colour: Black, with ABE for Moto Guzzi NTX350/650/750 (model year 1986-1990); without ABE for Moto Guzzi NTX750 (model year 1991-1994)

General description

Nitrogen-filled single-tube gas-pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound damping adjustment range achieves very good performance in all riding situations, both solo and fully loaded. The damper body is made of high-strength steel, the heads are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - continuously variable, via adjusting ring
- Rebound - continuously variable, via adjusting lever

Each pair of shock absorbers comes with a Basic setting tailored to the respective model.
Available in the version with chrome-plated head and foot with chrome-plated spring or with black head and foot with black spring. Also available in the version with chrome-plated head and foot and black spring (discontinued models).

Additionally, chrome-plated caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps): Part no. BI-GR9601
- Chrome caps upper (2 pieces ): Part no. BI-GR9603
- Black chrome caps upper (2 pieces, black chromed): Part no. BI-GR9604
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps) black chromed: Part no. BI-GR9605
Simply state the part number in the comments field when ordering. Please also indicate if the chrome caps should be mounted.
