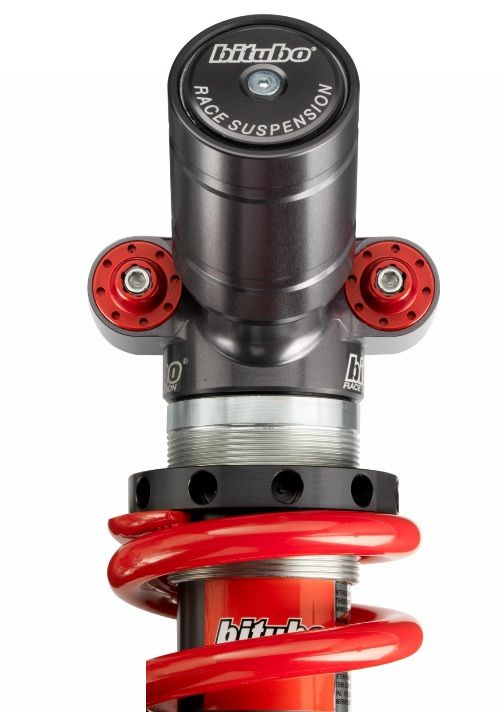

BITUBO shock absorber for KTM 390 RC / R Model Year 2015-2018

Product Details

BITUBO Monoshock, rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload continuously adjustable, spring colour in Red; for KTM 390 RC / R (with ABS), model year 2015-18

General Description

XXT Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber can be easily adapted even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium housing – an important point to fine-tune the handling to the rider's requirements. Furthermore, a new set-up has been developed to focus the XXT even more on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even in extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence during acceleration on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a piston rod with a 14 mm diameter, sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of oscillating spring movements.


Features:
- compression damping: 24 clicks
- Rebound: 24 clicks
- High-speed rebound damping: 20 clicks
- XXT11 Manual spring preload: continuously adjustable
- Adjustable length: 8 mm
- Very light
