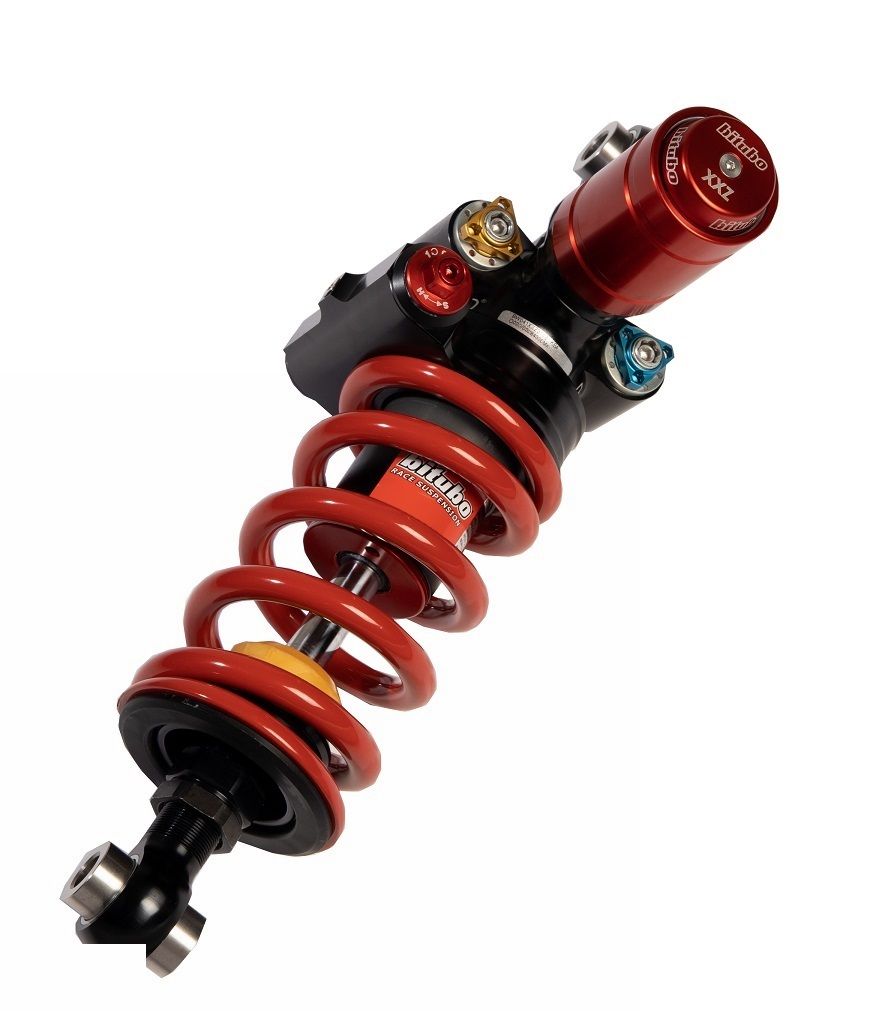

BITUBO shock absorber for Kawasaki Z H2 2020

Product details

BITUBO mono rear shock absorber, adjustable rebound damping (24 clicks), adjustable high-speed rebound (20 clicks), adjustable high-speed compression damping damping (20 clicks) and low-speed (24 clicks), adjustable length (8mm), hydraulic spring preload 10mm adjustable (=20 clicks), spring colour in red.
For Kawasaki Z H2, type ZRT00K, model year 2020

General description

XXZ mono shock absorbers – the direct evolution from racing. Thanks to the versatile adjustment options, the Bitubo XXZ shock absorber is easy to adapt even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium body – an important point to fine-tune the handling to the rider's requirements. Furthermore, a new set-up has been developed to focus the XXZ even more on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as even tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect rear wheel stability, even during the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14 mm diameter piston, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction of inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the damper.


Features:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- High-speed rebound: 20 clicks
- XXZ31 hydraulic spring preload: 12 mm = 24 clicks
- XXZ31V2 hydraulic spring preload: 10 mm = 20 clicks
- Adjustable length: 8 mm
- Very light
