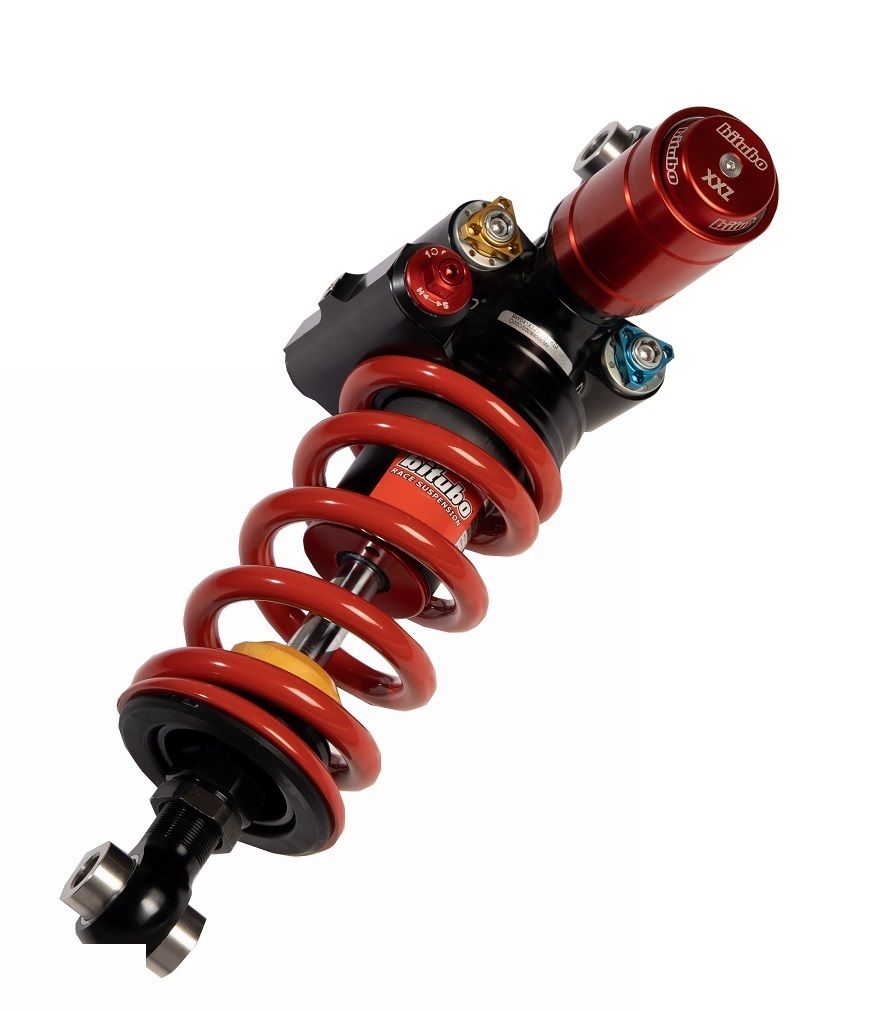

BITUBO shock absorber for Kawasaki Versys 650 2015-20

Product details

BITUBO mono rear absorber, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), high-speed compression damping damping (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in Red; with ABE for Kawasaki Versys 650 and Versys 650 ABS, Type LE650E / EA2, Model Year 2015-20

General Description

XXZ mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXZ shock absorber is easy to adjust even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium casing – an important point to adapt the handling to the rider's requirements. Furthermore, a new set-up has been developed to focus the XXZ even more on racing performance. An upgrade for optimised performance and simplification of length and spring spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even in extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers great confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperatures are improved.
By using a 14 mm diameter piston rod, sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the damper.


Features:
- Low-speed compression damping: 24 clicks
- High-speed compression damping: 20 clicks
- Rebound: 24 clicks
- High-speed Rebound: 20 clicks
- XXZ31 Hydraulic spring preload: 12 mm = 24 clicks
- XXZ31V2 Hydraulic spring preload: 10 mm = 20 clicks
- Adjustable Length: 8 mm
- Very lightweight
