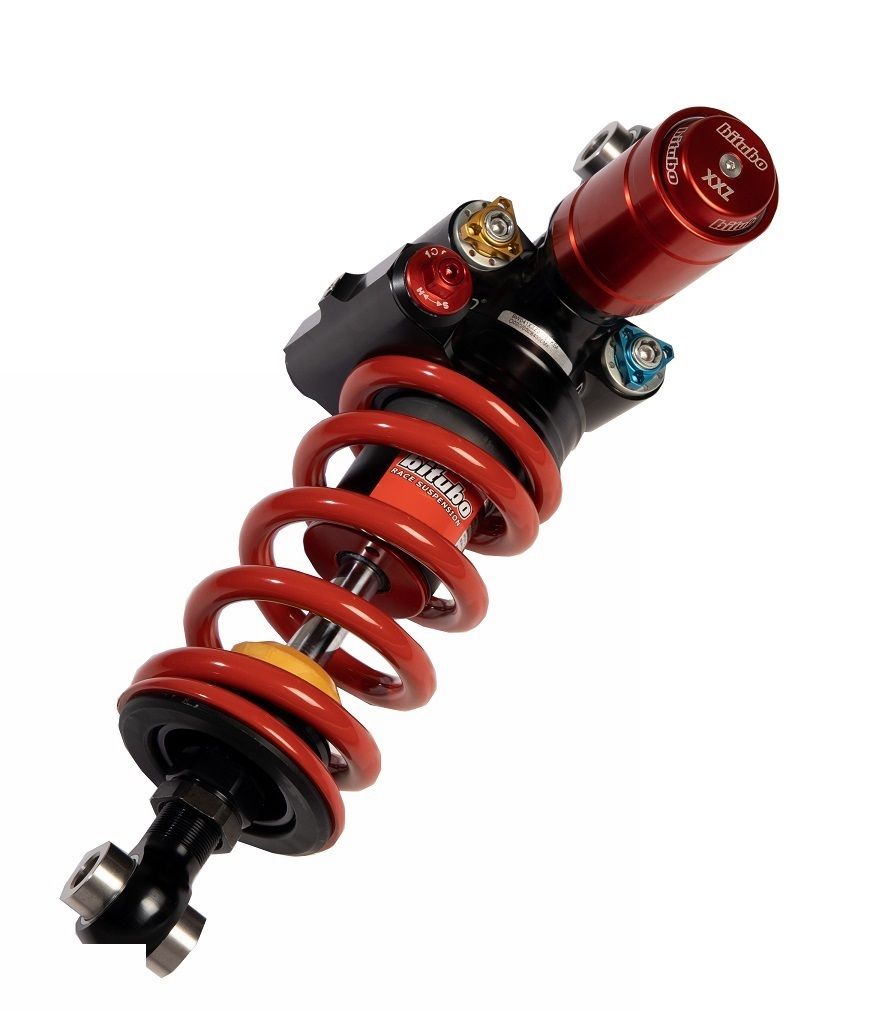

BITUBO shock absorber for Kawasaki ER6N 12-16

Product Details

BITUBO mono-shock absorber rear, adjustable rebound damping (24 clicks), high-speed rebound adjustable (20 clicks), compression damping damping high-speed (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in red, with ABE; for Kawasaki ER6N Type: ER650E (model year 2012-'14) (model year 2015-'16 without ABE)

General Description

XXZ Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXZ shock absorber is easy to adjust even when installed.

The development of this damper culminates in an overall weight reduction through the use of an aluminium housing – a crucial point for tailoring handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXZ with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The aim is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect rear wheel stability, even during the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14 mm diameter piston rod, sliding behaviour is improved, while the Ø30mm separator piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces, thus enabling immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, all of which are now located in the upper part of the damper.


Features:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- High-speed rebound: 20 clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 clicks
- Adjustable length: 8 mm
- Very light
