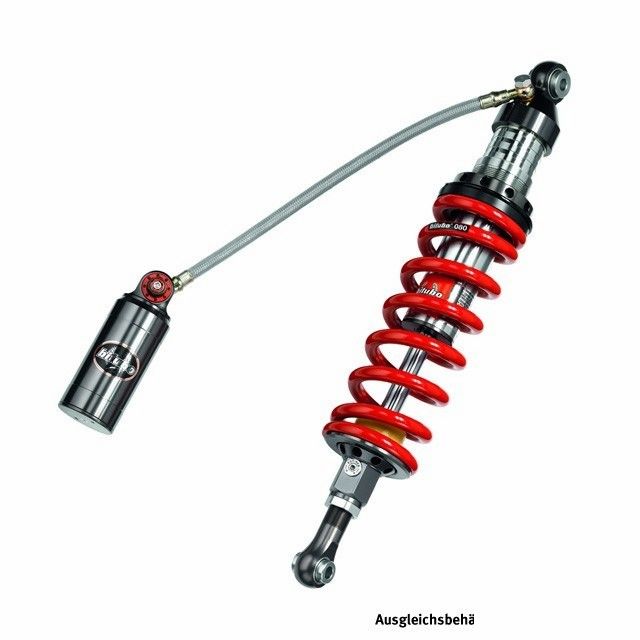

BITUBO shock absorber for Honda VFR800 98-

Product details

BITUBO mono-shock absorber rear, with externa balance tank, rebound damping adjustable, compression damping damping adjustable in high- and low-speed, length adjustable by 8mm, spring preload continuously adjustable, spring colour red; for Honda VFR800 Type: RC46 (from model year ´98-)

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure-assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston rod with an anti-friction coating and friction-minimised bushing. The lower and upper mounting are made of an aluminium alloy, as used in aviation – precisely CNC machined. The setting of the spring preload is hydraulic and can be adjusted both manually and with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases both grip and comfort.

The last digit in the shock absorber's designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers ending in “2” have a black spring. For example, the shock absorber “CLU11” has a red spring, and “CLU12” consequently has a black one.

Features CLU1:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
