BITUBO shock absorber for Honda Hornet 600 09-

Product details

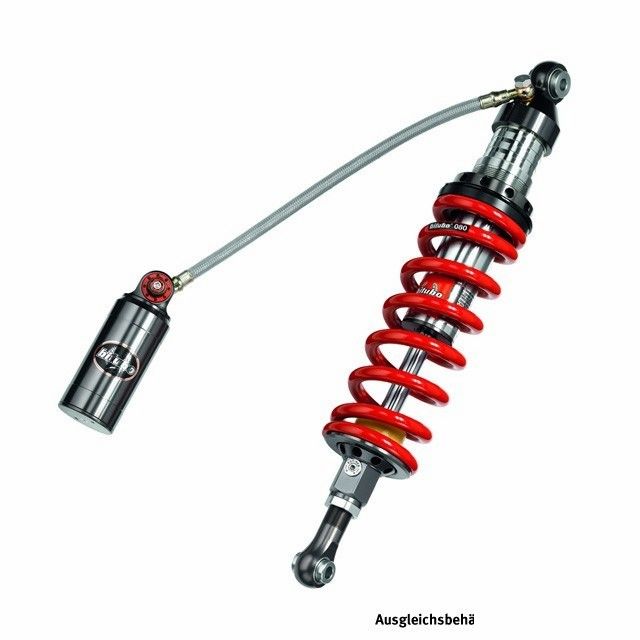

BITUBO mono shock absorber rear, with externa balance tank, rebound damping adjustable, compression damping damping adjustable in high and low speed, length adjustable 8mm, spring preload 12mm hydraulic adjustable, spring colour red; for Honda Hornet 600 Type: PC41 (from model year ´09-)

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. It is a gas-pressure-assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, Ø16mm piston with anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made of an aluminium alloy, as used in aviation - precisely CNC machined. The setting of the spring preload is hydraulic and can be adjusted both manually and by a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers with the suffix “2” have a black spring. For example, the shock absorber “CLU31” has a red spring, “CLU32” consequently a black one.

Features CLU3:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
