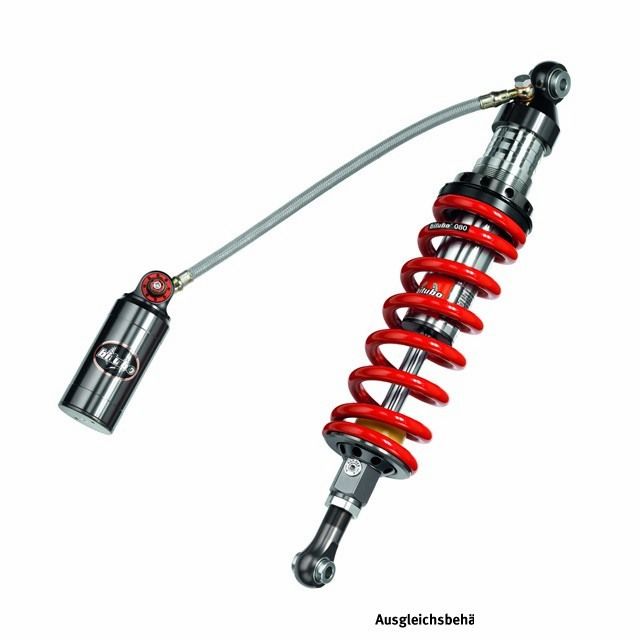

BITUBO shock absorber for Honda CBR600F and CBR600F Sport 2001-2006

Product Details

BITUBO mono-shock absorber rear, with externa balance tank, rebound damping adjustable, compression damping damping adjustable in high and low speed, length adjustable by 8mm, spring preload continuously adjustable, spring colour red; for Honda CBR600F and CBR600F Sport, model years 2001-2006

General Description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure-assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston rod with an anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made from an aluminium alloy, as used in aviation – precisely CNC machined. The setting of the spring preload is hydraulic and can be done both manually and with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise hydraulic oil cooling. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the colour of the spring: ‘1’ stands for a red spring, while shock absorbers ending with ‘2’ have a black spring. For example, the shock absorber ‘CLU11’ has a red spring, and ‘CLU12’ consequently has a black one.

CLU1 Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuous
- Adjustable Length: 8 mm
