BITUBO shock absorber for Honda CBR600F 11-

Product details

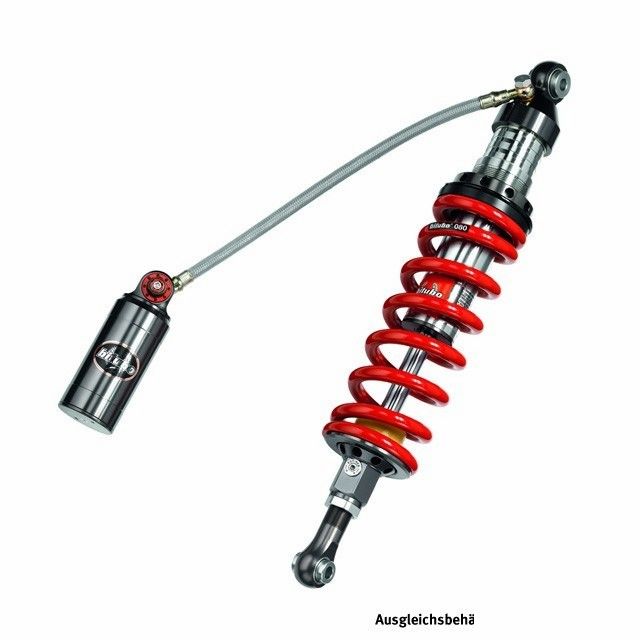

BITUBO mono rear shock absorber, with externa balance tank, adjustable rebound damping, adjustable high and low-speed compression damping damping, 8mm length adjustment, continuously adjustable spring preload, red spring colour; for Honda CBR600F (Sport) Type: PC41 (from model year ´11-)

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. It is a gas-assisted shock absorber with a separating piston for oil/nitrogen in the balance tank, a Ø16mm piston rod with an anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made of an aluminium alloy, as used in aerospace – precisely CNC machined. The setting of the spring preload is hydraulic and can be adjusted manually or by a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the spring colour: "1" stands for a red spring, while shock absorbers ending with "2" have a black spring. For example, the shock absorber "CLU11" has a red spring, and "CLU12" consequently has a black one.

Features CLU1:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
