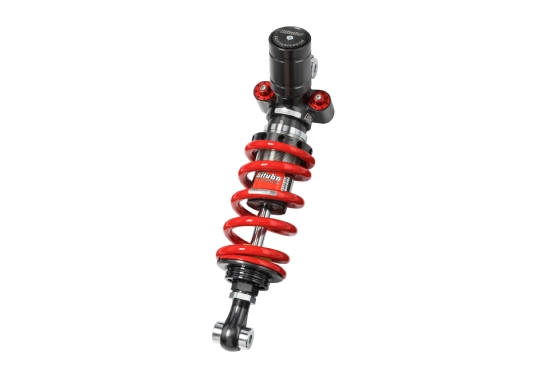

BITUBO shock absorber for Honda CBR1000RR-R from model year 2020-

Product details

BITUBO mono-shock absorber rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping adjustable (24 clicks), length adjustable (8mm), stepless spring preload preload, spring colour in Red; for Honda CBR1000RR-R, type SC82, from model year 2020-

General description

XXT Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber can be easily adjusted even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium body – an important point to adapt handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXT with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence during acceleration on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14 mm diameter piston rod, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of oscillating spring movements.


Features:
- compression damping: 24 clicks
- Rebound: 24 clicks
- High-speed compression damping damping: 20 clicks
- XXT11 Manual spring preload: stepless
- Adjustable length: 8 mm
- Very lightweight
