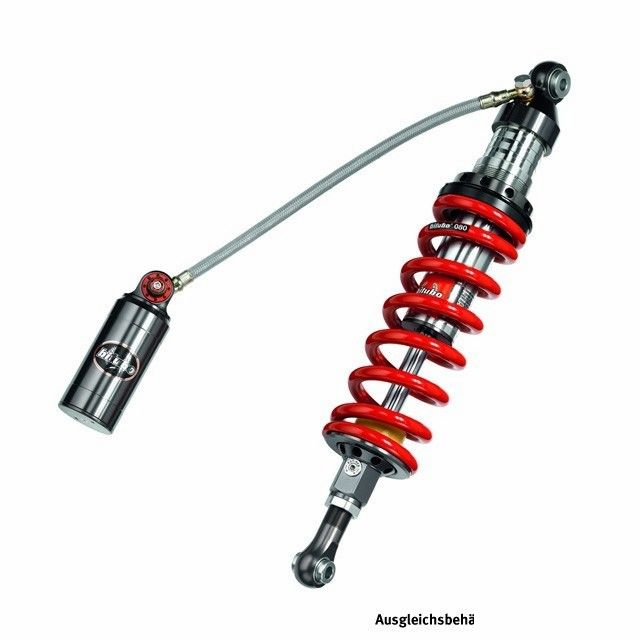

BITUBO shock absorber for Honda CB1000R 08-

Product details

BITUBO mono rear shock absorber, with externa balance tank, adjustable rebound damping, adjustable high and low speed compression damping damping, length adjustable 8mm, spring preload 12mm hydraulic adjustable, red spring colour.
For Honda CB1000R Type: SC60, Model year 2008-17

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sports motorcycles. This is a gas-assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, Ø16mm piston rod with anti-friction coating, and minimised friction bushing. The lower and upper mounting are made of an aluminium alloy, as used in aviation - precisely CNC machined. The setting of the spring preload is hydraulic and can be adjusted both manually and with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers with the suffix “2” have a black spring. For example, the shock absorber “CLU31” has a red spring, and “CLU32” consequently has a black one.

Features CLU3:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
