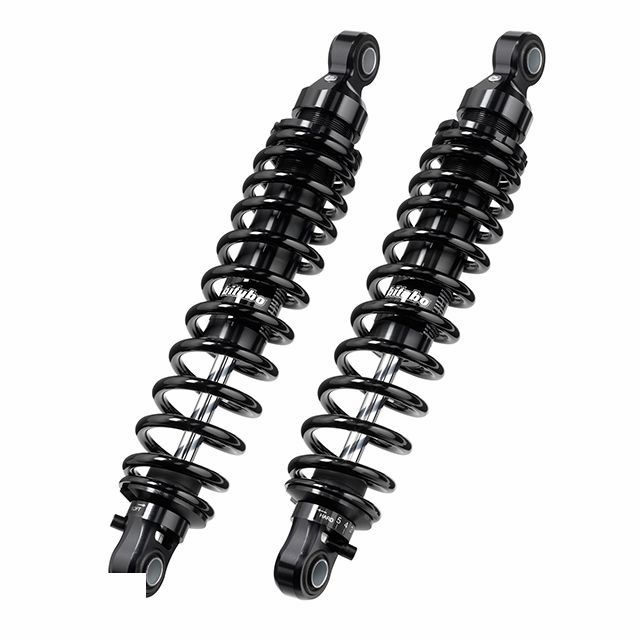

BITUBO shock absorber for Harley Davidson Various Models
€541.51 gross €570.01 RRP incl. VAT
Article number:
BI-HD003-WME02V2
Product details
BITUBO stereo shock absorbers rear, 301mm long (11.8 inch), spring preload and rebound damping adjustable; colour: black, for Harley Davidson (various models) with ABE according to the usage listGeneral description
Nitrogen-filled single-tube gas-pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound adjustment range achieves excellent performance in all riding situations, both solo and fully loaded. The damper body is made from high-strength steel; the heads are CNC-machined from billet aluminium.Adjustment options:
- spring preload - continuously adjustable, via adjusting ring
- Rebound - continuously adjustable, via adjusting lever
Each pair of shock absorbers comes with a Basic setting tailored to the specific model.
Available with chrome-plated head and foot with chrome-plated spring or with black head and foot with black spring. Also available with chrome-plated head and foot and black spring (discontinued models).
Additionally, chrome-plated caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 upper uppers and 2 lower chrome caps): Part No. BI-GR9601
- Upper chrome caps (2 pieces): Part No. BI-GR9603
- Black upper chrome caps (2 pieces, black chrome-plated): Part No. BI-GR9604
- Chrome cap set (2 pairs = 2 upper uppers and 2 lower chrome caps) black chrome-plated: Part No. BI-GR9605
Simply state the part number in the comments field when ordering. Please also indicate whether the chrome caps should be fitted.
Available with chrome caps upon request. Please specify in the order notes if the chrome caps should be fitted:
BI-GR9601 = chrome-coloured, set for upper and lower, €110.08
BI-GR9603 = chrome-coloured, set for upper only, €55.34
BI-GR9604 = black chrome-plated, set for upper only, €55.34
BI-GR9605 = black chrome-plated, set for upper and lower, €110.08
BI-GR9601 = chrome-coloured, set for upper and lower, €110.08
BI-GR9603 = chrome-coloured, set for upper only, €55.34
BI-GR9604 = black chrome-plated, set for upper only, €55.34
BI-GR9605 = black chrome-plated, set for upper and lower, €110.08
| Manufacturer | Model | Additional Designation | Type | Model Year | Variant/Version | Note | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|---|---|
| Harley Davidson | Dyna Low Rider | FXS | 1983 - 1985 | BF | Original length: 301mm (11.8 inch) | ABE | rear | 1340 | |
| Harley Davidson | Dyna Low Rider Custom | FXLR | 1987 - 1994 | Original length: 331mm (13 inch) | ABE | rear | 1340 | ||
| Harley Davidson | Dyna Low Rider Sport | FXRS | 1993 - 1993 | EG93 | Original length: 331mm (13 inch) | ABE | rear | 1340 | |
| Harley Davidson | Dyna Super Glide | B80 | FX | 1980 - 1982 | Original length: 301mm (11.8 inch) | ABE | rear | 1340 | |
| Harley Davidson | Dyna Super Glide | FX | 1971 - 1978 | 2CH | Original length: 301mm (11.8 inch) | ABE | rear | 1200 | |
| Harley Davidson | Dyna Wide Glide | FXWG | 1980 - 1984 | Original length: 301mm (11.8 inch) | ABE | rear | 1340 | ||
| Harley Davidson | Electra Glide | FLH | 1974 - 1980 | 2AH | Original length: 301mm (11.8 inch) | ABE | rear | 1200 | |
| Harley Davidson | Electra Glide | FLHT | 1995 - 1996 | DD 95/96 | Original length: 331mm (13 inch) | ABE | rear | 1340 | |
| Harley Davidson | Electra Glide Classic | FLHTC | 1980 - 1984 | Original length: 301mm (11.8 inch) | ABE | 1340 | |||
| Harley Davidson | Electra Glide Classic | FLHTC | 1991 - 1996 | DJ | Original length: 331mm (13 inch) | ABE | rear | 1450 | |
| Harley Davidson | Electra Glide Classic | FLHTC | 2012 - 2013 | FFM | Original length: 331mm (13 inch) | ABE | rear | 1690 | |
| Harley Davidson | Electra Glide Classic | FLHTC | 2009 - 2010 | FF | Original length: 331mm (13 inch) | ABE | rear | 1584 | |
| Harley Davidson | Electra Glide Classic | FLHTC | 2011 - 2011 | FF4 | Original length: 331mm (13 inch) | rear | 1584 | ||
| Harley Davidson | Electra Glide Classic | FLHTC | 2001 - 2008 | FFM | Original length: 331mm (13 inch) | ABE | rear | 1690 | |
| Harley Davidson | Electra Glide Classic | FLHTCI | 1996 - 1996 | FF96 (EFI) | Original length: 331mm (13 inch) | rear | 1450 | ||
| Harley Davidson | Electra Glide Ultra Classic | FLHTCU | 1991 - 1996 | DP | Original length: 331mm (13 inch) | ABE | rear | 1340 | |
| Harley Davidson | Electra Glide Ultra Classic | FLHTCU | 2009 - 2013 | FC | Original length: 331mm (13 inch) | rear | 1584 | ||
| Harley Davidson | Electra Glide Ultra Limited | FLHTK | 2009 - 2013 | KE | Original length: 331mm (13 inch) | ABE | rear | 1584 | |
| Harley Davidson | Road Glide | FLTR | 2009 - 2009 | FL2 | Original length: 301mm (11.8 inch) | ABE | rear | 1584 | |
| Harley Davidson | Road Glide | FLTRI | 2009 - 2009 | FS (EFI) | Original length: 331mm (13 inch) | rear | 1584 | ||
| Harley Davidson | Road Glide Ultra | FLTRU | 2011 - 2013 | KGM | Original length: 331mm (13 inch) | ABE | rear | 1584 | |
| Harley Davidson | Road King | FLHR | 1993 - 1996 | FD | Original length: 331mm (13 inch) | ABE | rear | 1340 | |
| Harley Davidson | XL1200 Sportster | XL1200 | 1988 - 1990 | CAP J/K/L | Original length: 341mm (13.5 inch) | rear | 1200 | ||
| Harley Davidson | XL1200C Sportster Custom | XL1 | 1999 - 2002 | ABE | rear | 1200 | |||
| Harley Davidson | XL1200C Sportster Custom | XL2 | 1996 - 1999 | ABE | rear | 1200 | |||
| Harley Davidson | XL1200L Sportster Low | XL1200 | 2006 - 2011 | ABE | rear | 1200 | |||
| Harley Davidson | XL1200R Sportster Roadster | XL1200 | 2004 - 2008 | XL2 CL / CV | ABE | rear | 1200 | ||
| Harley Davidson | XL1200S Sportster Sport | XL1 | 1999 - 2002 | CH | Original length: 351mm (13.75 inch) | ABE | rear | 1200 | |
| Harley Davidson | XL1200X Sportster Forty-Eight | XL2 | 2010 - 2015 | LC | ABE | rear | 1200 | ||
| Harley Davidson | XL883 De Luxe | XL/2 | 1988 - 1995 | CF | ABE | rear | 883 | ||
| Harley Davidson | XL883 Sportster | XL2 | 2004 - 2008 | CA | ABE | rear | 883 | ||
| Harley Davidson | XL883 Sportster Hugger | XL883 | 2004 - 2006 | CA | Original length: 341mm (13.5 inch) | rear | 883 | ||
| Harley Davidson | XL883 Sportster Hugger | XL883 | 1991 - 2003 | CAM | Original length: 341mm (13.5 inch) | rear | 883 | ||
| Harley Davidson | XL883 Sportster Hugger | XL883 | 2007 - 2008 | CN | Original length: 331mm (13 inch) | rear | 883 | ||
| Harley Davidson | XLH1200 Sportster | XLH | 1988 - 1999 | CAP J/K/L | ABE | rear | 1200 | ||
| Harley Davidson | XLH883 Sportster | XL/2 | XLH | 1991 - 1999 | ABE | rear | 883 | ||
| Harley Davidson | XLH883 Sportster | XLH | 1986 - 1987 | CAM G-H | Original length: 341mm (13.5 inch) | ABE | rear | 883 | |
| Harley Davidson | XLH883 Sportster | XLH | 1988 - 1990 | CAM J-K-L | Original length: 341mm (13.5 inch) | ABE | rear | 883 | |
| Harley Davidson | XLH883 Sportster | XL1 | XLH | 1999 - 2002 | ABE | rear | 883 | ||
| Harley Davidson | XLH883 Sportster | XL/2 | XLH | 2004 - 2008 | ABE | 883 | |||
| Harley Davidson | XLH883 Sportster Hugger | XL1 | XLH | 1999 - 2003 | ABE | rear | 883 | ||
| Harley Davidson | XLH883 Sportster Hugger | XLH | 1992 - 1999 | CE | Original length: 291mm (11.5 inch) | ABE | rear | 883 | |
| Harley Davidson | XLH883 Sportster Hugger DeLuxe | DLX | XLH | 1988 - 1995 | CF | Original length: 341mm (13.5 inch) | rear | 883 | |
| Harley Davidson | XLH883 Sportster Hugger DeLuxe | XL/2 | XLH | 1986 - 1987 | CAM G-H | Original length: 321mm (12.5 inch) | ABE | rear | 883 |
