BITUBO shock absorber for Harley Davidson Sportster / Nightster / Sportster Seventy-Two / Sportster Forty-Eight / Custom / Roadster

Example photo

€541.51 gross €455.05 net €570.01 RRP incl. VAT

Prices incl. VAT plus shipping costs

Article number: BI-HD031-WME02V2

In ca. 15 working days

Product details

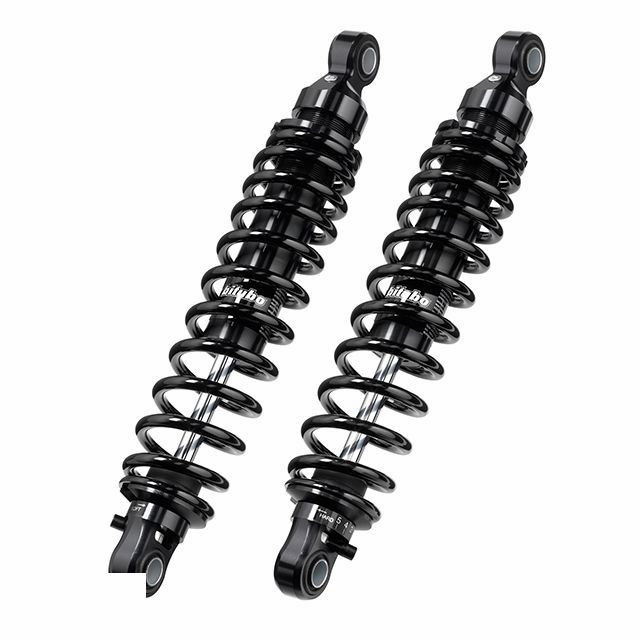

BITUBO stereo shock absorbers rear, 356mm long (14 inch), spring preload and rebound damping adjustable; Colour: black, for Harley Davidson (various models) with ABE according to the application list

General description

Nitrogen-filled single-tube gas pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound damping adjustment range achieves very good performance in all riding situations, both solo and fully loaded. The damper body is made of high-strength steel; the heads are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - stepless, via adjusting ring
- Rebound damping - stepless, via adjusting lever

Each pair of shock absorbers comes with a Basic setting, tuned to the respective model.

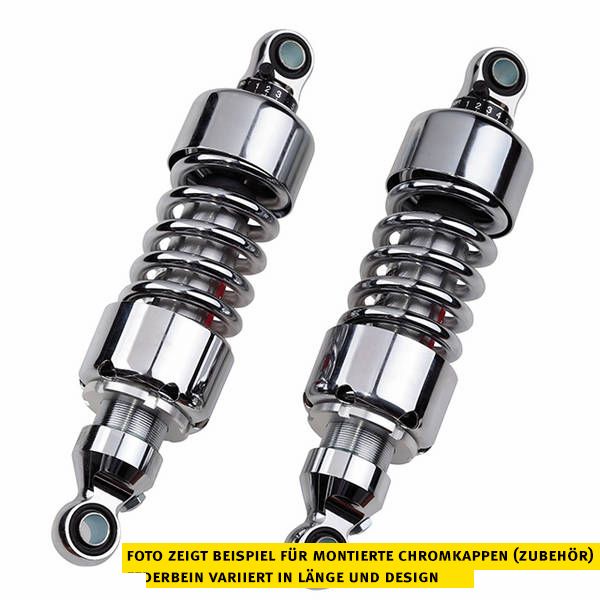

Available with chromed head and foot with chromed spring or with black head and foot with black spring. Also available with a chromed head and foot and black spring (discontinued models).

Additionally, chrome caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 upper and 2 lower chrome caps): Article no. BI-GR9601
- Upper chrome caps (2 pieces): Article no. BI-GR9603
- Black upper chrome caps (2 pieces, black chromed): Article no. BI-GR9604
- Chrome cap set (2 pairs = 2 upper and 2 lower chrome caps) black chromed: Article no. BI-GR9605
For this, simply state the article number in the comments field when ordering. Please also note if the chrome caps should be fitted.

Available with chrome caps on request. Please specify in the order notes if the chrome caps should be fitted:

BI-GR9601 = chrome-coloured, set for top and bottom, €110.08

BI-GR9603 = chrome-coloured, set for top only, €55.34

BI-GR9604 = black chromed, set for top only, €55.34

BI-GR9605 = black chromed, set for top and bottom, €110.08

Manufacturer	Model	Additional designation	Type	Model year	Variant/Version	Note	Homologation	Position	ccm
Harley Davidson	XL1200C Sportster Custom		XL1200C	2009 - 2015	CT	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200C Sportster Custom		XL1200C	2004 - 2006	CG	Original length: 301mm (11.8 inch)	ABE	rear	1200
Harley Davidson	XL1200C Sportster Custom		XL1200C	2007 - 2008	CT	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200CA Sportster Custom Limited A		XL1200C	2013 - 2015	LJ	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200CB Sportster Custom Limited B		XL1200C	2013 - 2015	LK	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200CP Sportster		XL1200C	2011 - 2015	LH	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200L Sportster Low		XL1200	2006 - 2006	CW	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200L Sportster Low		XL1200	2007 - 2011	CX	Original length: 291mm (11.5 inch)	ABE	rear	1200
Harley Davidson	XL1200N Nightster		XL1200	2007 - 2012	CZ	Original length: 281mm (11 inch)	ABE	rear	1200
Harley Davidson	XL1200V Sportster Seventy-Two		XL1200	2012 - 2015	XL2 / LF	Original length: 296mm (11.75 inch)	ABE	rear	1200
Harley Davidson	XL1200X Sportster Forty-Eight		XL2	2010 - 2015	LC	Original length: 296mm (11.75 inch)	ABE	rear	1200
Harley Davidson	XL50 Sportster	50th Anniversary	CY	2007 - 2007			ABE		1200
Harley Davidson	XL883C Sportster Custom		XL/2	2009 - 2010	CP	Original length: 291mm (11.5 inch)	ABE	rear	883
Harley Davidson	XL883L Sportster Superlow		XL883	2010 - 2015	XL2 / CR	Original length: 291mm (11.5 inch)	ABE	rear	883
Harley Davidson	XL883N Sportster Iron		XL883	2009 - 2016	XL2 /LE	Original length: 281mm (11 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2002 - 2003	XL1 / CK	Original length: 341mm (13.5 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2005 - 2006	XL2 / CK	Original length: 336mm (13.25 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2009 - 2010	XL2 / CS	Original length: 336mm (13.25 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2007 - 2013	XL2 / CS	Original length: 336mm (13.25 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2003 - 2003	XL2		ABE		883
Harley Davidson	XL883R Sportster Roadster		XL883	2011 - 2015	CS	Original length: 336mm (13.25 inch)	ABE	rear	883
Harley Davidson	XL883R Sportster Roadster		XL883	2007 - 2008	XL2 / CS	Original length: 336mm (13.25 inch)	ABE	rear	883
