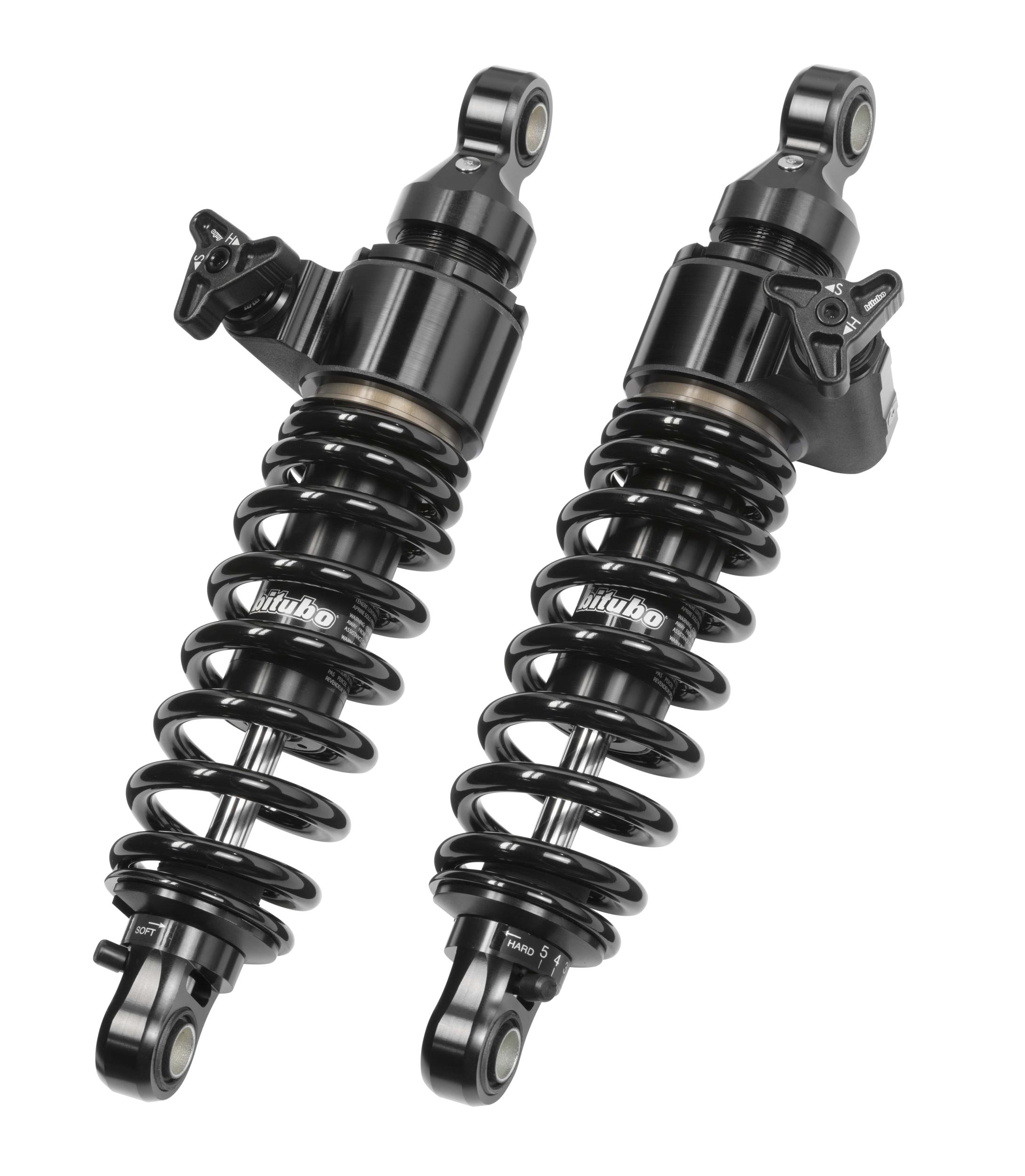

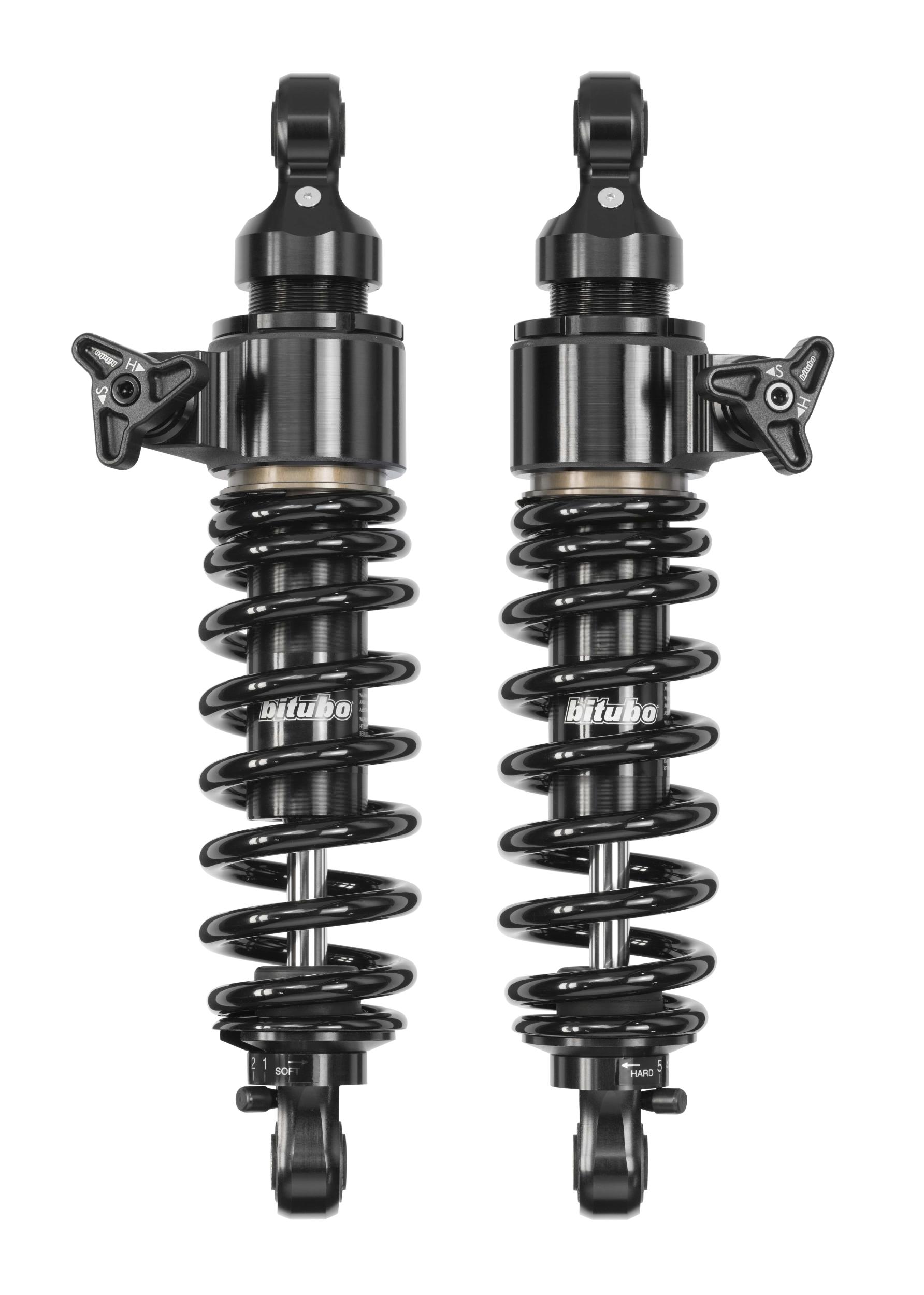

BITUBO shock absorber for Harley Davidson Dyna Low Rider FXDL 2014 - 2017

Product Details

BITUBO stereo shock absorbers rear, 306mm long (12 inch), hydraulice spring preload, adjustable rebound damping; shock absorber completely black, for Harley Davidson (various models); also available with chrome caps upon request for an extra charge! with ABE according to application list with ABE according to application list

General Description

Nitrogen-filled, single-tube gas-pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound adjustment range achieves very good performance in all riding situations, i.e., both solo and fully loaded. The damper body is made of high-strength steel, the head parts are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - continuously variable, via adjustment ring
- Rebound - continuously variable, via adjustment lever

Each pair of shock absorbers comes with an Basic setting, which is tuned to the respective model.
Available in the version with chromed head and foot with chromed spring or with black head and foot with black spring. Also available in the version with chromed head and foot and black spring (discontinued models).

Additionally, chrome caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps): Part no. BI-GR9601
- Upper chrome caps (2 pieces): Part no. BI-GR9603
- Black upper chrome caps (2 pieces, black chromed): Part no. BI-GR9604
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps) black chromed: Part no. BI-GR9605
For this, simply state the part number in the comments field when ordering. Please also note if the chrome caps should be mounted.
