BITUBO shock absorber for Harley Davidson Dyna Fat Bob / Glide / Street Bob / Super Glide / Wide Glide / Low Rider

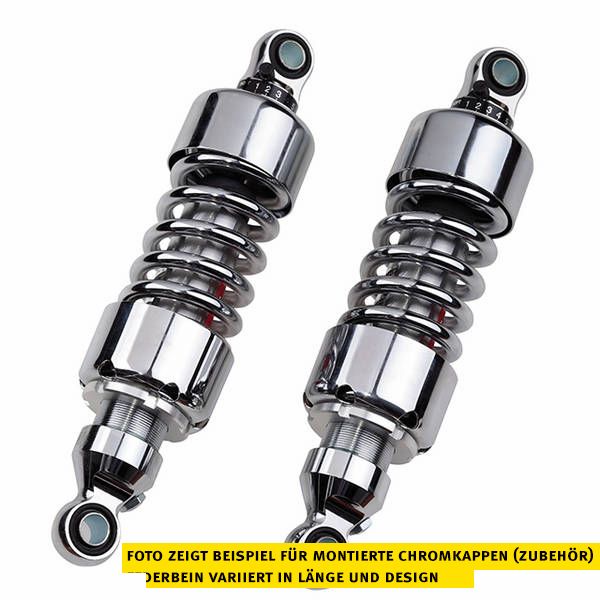

Example photo

€541.51 gross €455.05 net €570.01 RRP incl. VAT

Prices incl. VAT plus shipping costs

Article number: BI-HD034-WME03

In ca. 15 working days

Product details

BITUBO stereo shock absorbers rear, 306mm long (12 inch), spring preload and rebound damping adjustable, colour: chrome, for Harley Davidson (various models) with ABE according to the application list

General description

Nitrogen-filled single-tube gas-pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound adjustment range achieves very good performance in all riding situations, both solo and fully loaded. The damper body is made of high-strength steel, the head parts are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - stepless, via adjustment ring
- Rebound - stepless, via adjustment lever

Each pair of shock absorbers comes with a Basic setting that is tailored to the respective model.
Available with chrome-plated head and foot with chrome-plated spring or with black head and foot with black spring. Also available with chrome-plated head and foot and black spring (discontinued models).

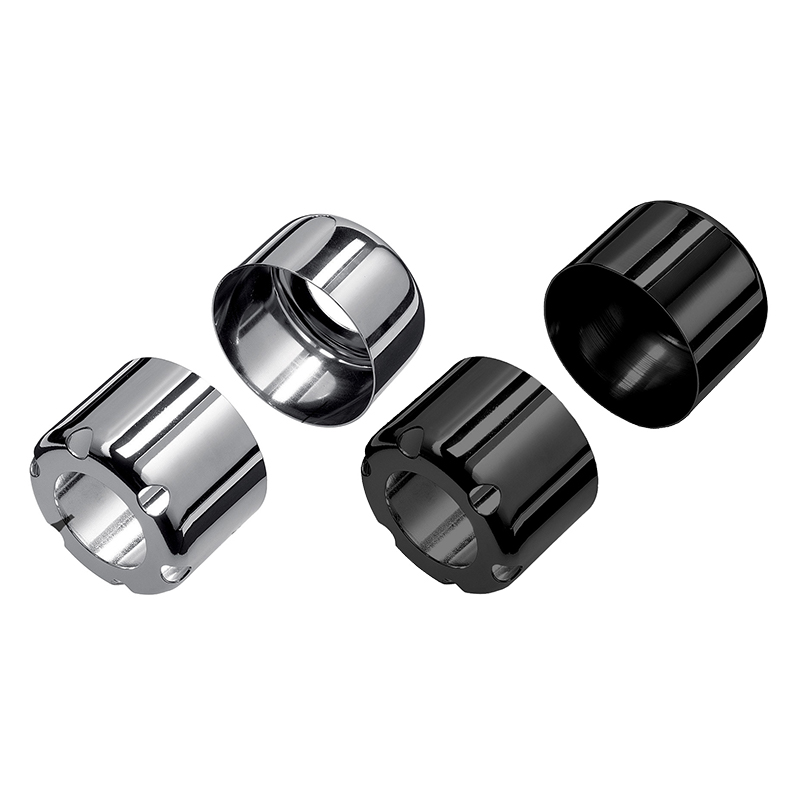

Additionally, chrome-plated caps can be purchased in the following versions:
- Chrome cap set (2 upper and 2 lower chrome caps): Item no. BI-GR9601
- Upper chrome caps (2 pieces): Item no. BI-GR9603
- Upper black chrome caps (2 pieces, black chrome-plated): Item no. BI-GR9604
- Chrome cap set (2 upper and 2 lower chrome caps) black chrome-plated: Item no. BI-GR9605
Simply specify the item number in the notes field when ordering. Please also indicate whether the chrome caps should be fitted.

Available with chrome caps upon request. Please specify in the order notes if the chrome caps should be fitted:

BI-GR9601 = chrome-coloured, set for upper and lower, €110.08

BI-GR9603 = chrome-coloured, set for upper only, €55.34

BI-GR9604 = black chrome-plated, set for upper only, €55.34

BI-GR9605 = black chrome-plated, set for upper and lower, €110.08

Manufacturer	Model	Additional designation	Type	Model year	Variant/Version	Note	Homologation	Position	ccm
Harley Davidson	Dyna Fat Bob		FXDF	2008 - 2013	GY	Original length: 306mm (12 inch)	ABE	rear	1584
Harley Davidson	Dyna Glide Convertible		FXDS	1993 - 1999	GG	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Glide Custom		FXDC	1992 - 1992	GCLN	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Glide Custom		FXDC	1991 - 1992					1340
Harley Davidson	Dyna Glide Daytona		FXDB	1992 - 1992	GX	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Glide Sturgis		FXDB	1990 - 1992	FXD/GH	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Low Rider		FXDL	1993 - 2000	GD	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Low Rider		FXDL	2001 - 2005	GD	Original length: 306mm (12 inch)	ABE	rear	1449
Harley Davidson	Dyna Low Rider		FXDL	2010 - 2017	FD2/GN				1584
Harley Davidson	Dyna Low Rider		FXDL	2004 - 2005	GD (EFI)	Original length: 306mm (12 inch)	ABE	rear	1449
Harley Davidson	Dyna Low Rider		FXDLI	2006 - 2009	FD2		ABE	rear	1450
Harley Davidson	Dyna Street Bob		FXDB	2012 - 2016	FD2/GX	Original length: 306mm (12 inch)	ABE	rear	1700
Harley Davidson	Dyna Street Bob		FXDB	2014 - 2016	GXM	Original length: 306mm (12 inch)	ABE	rear	1700
Harley Davidson	Dyna Street Bob		FXDB	2006 - 2012	FD2/GX	Original length: 306mm (12 inch)	ABE	rear	1600
Harley Davidson	Dyna Street Bob	103	FXDBA	2014 - 2015	FD2/VB	Original length: 306mm (12 inch)	ABE	rear	1690
Harley Davidson	Dyna Street Bob		FXDBB	2014 - 2016	VCM / VC4	Original length: 306mm (12 inch)	ABE	rear	1700
Harley Davidson	Dyna Street Bob		FXDBP	2013 - 2016	VAM		ABE	rear	1590
Harley Davidson	Dyna Super Glide		FXD	1995 - 2005	FD1/GH	Original length: 321mm (12.5 inch)	ABE	rear	1340
Harley Davidson	Dyna Super Glide		FXD	2006 - 2009	FD2/GM	Original length: 321mm (12.5 inch)	ABE	rear	1580
Harley Davidson	Dyna Super Glide		FXD	2014 - 2014	FD2		ABE	rear	1450
Harley Davidson	Dyna Super Glide		FXDI	2003 - 2005	FD1		ABE	rear	1449
Harley Davidson	Dyna Super Glide Custom		FXDC	2007 - 2009	GV (EFI)	Original length: 321mm (12.5 inch)	ABE	rear	1450
Harley Davidson	Dyna Super Glide Custom		FXDC	2010 - 2014	FD2/GV	Original length: 306mm (12 inch)	ABE	rear	1584
Harley Davidson	Dyna Super Glide Custom		FXDC	2006 - 2009	FD2	Original length 321 mm (12.4 inch)		rear	1584
Harley Davidson	Dyna Super Glide Custom		FXDC	1995 - 2005	FD1/GT	Original length 321 mm (12.65 inch)			1340
Harley Davidson	Dyna Super Glide Custom		FXDCI	2005 - 2005	FD1		ABE	rear	1449
Harley Davidson	Dyna Super Glide Custom 110th Anniversary		FXDC	2013 - 2013	GV	Original length: 306mm (12 inch)	ABE	rear	1580
Harley Davidson	Dyna Super Glide Special		FXDS	1999 - 1999	GG	Original length: 331mm (13 inch)	ABE	rear	1449
Harley Davidson	Dyna Super Glide Sport		FXDX	2000 - 2005	GJ	Original length: 331mm (13 inch)	ABE	rear	1449
Harley Davidson	Dyna Super Glide Sport		FXDX	1999 - 1999	GJ	Original length: 331mm (13 inch)	ABE	rear	1449
Harley Davidson	Dyna Super Glide Sport		FXDXI	2003 - 2006	FD1		ABE	rear	1450
Harley Davidson	Dyna Wide Glide		FXDWG	2006 - 2007	FD2		ABE	rear	1450
Harley Davidson	Dyna Wide Glide		FXDWG	2012 - 2016	GP / GP4	Original length: 306mm (12 inch)	ABE	rear	1802
Harley Davidson	Dyna Wide Glide		FXDWG	2012 - 2016	GPM	Original length: 306mm (12 inch)	ABE	rear	1690
Harley Davidson	Dyna Wide Glide		FXDWGI	2004 - 2005	GP	Original length: 321mm (12.5 inch)	ABE	rear	1450
