BITUBO shock absorber for Harley Davidson Dyna Fat Bob FXDF 2014 - 2017

Product Details

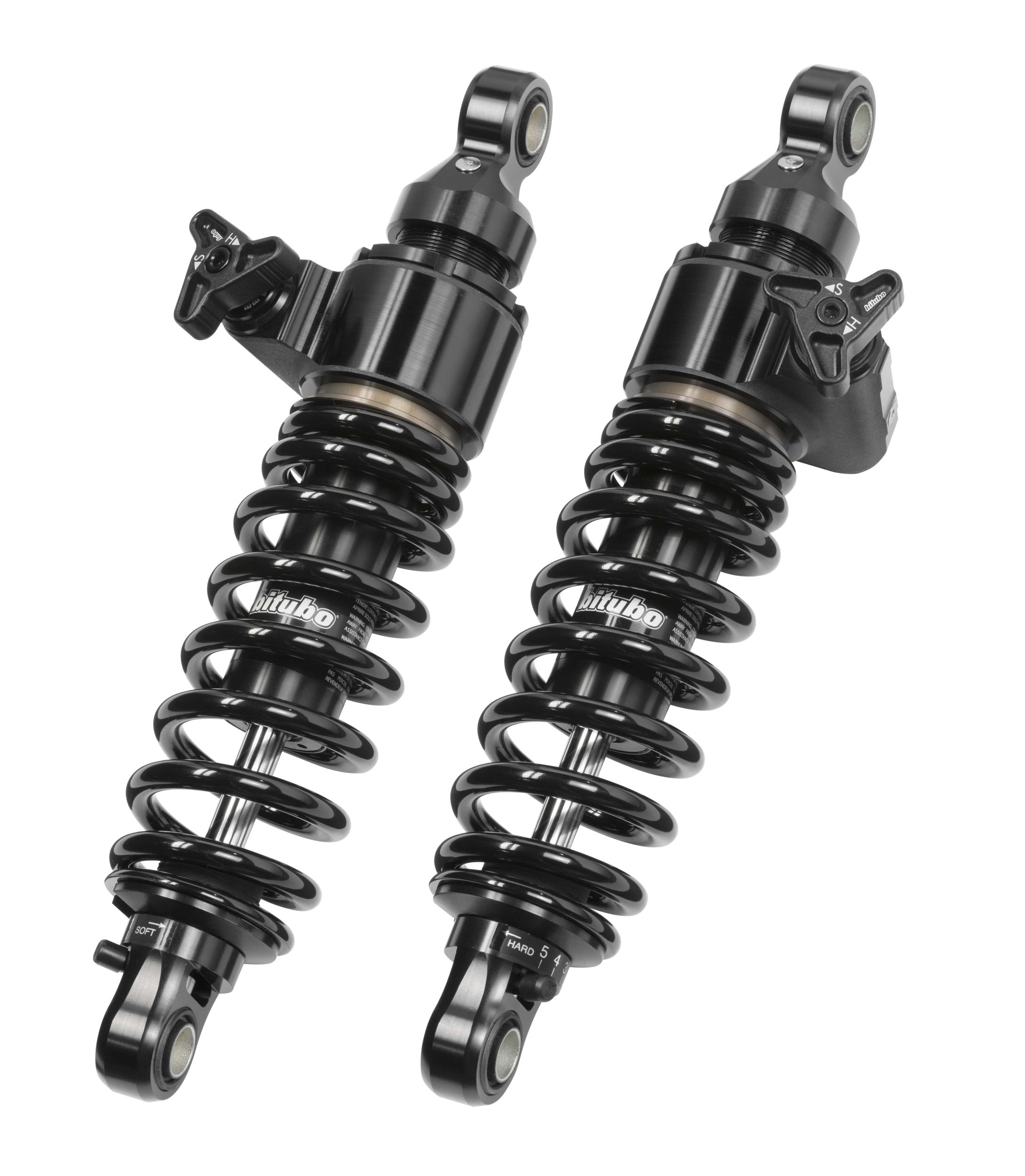

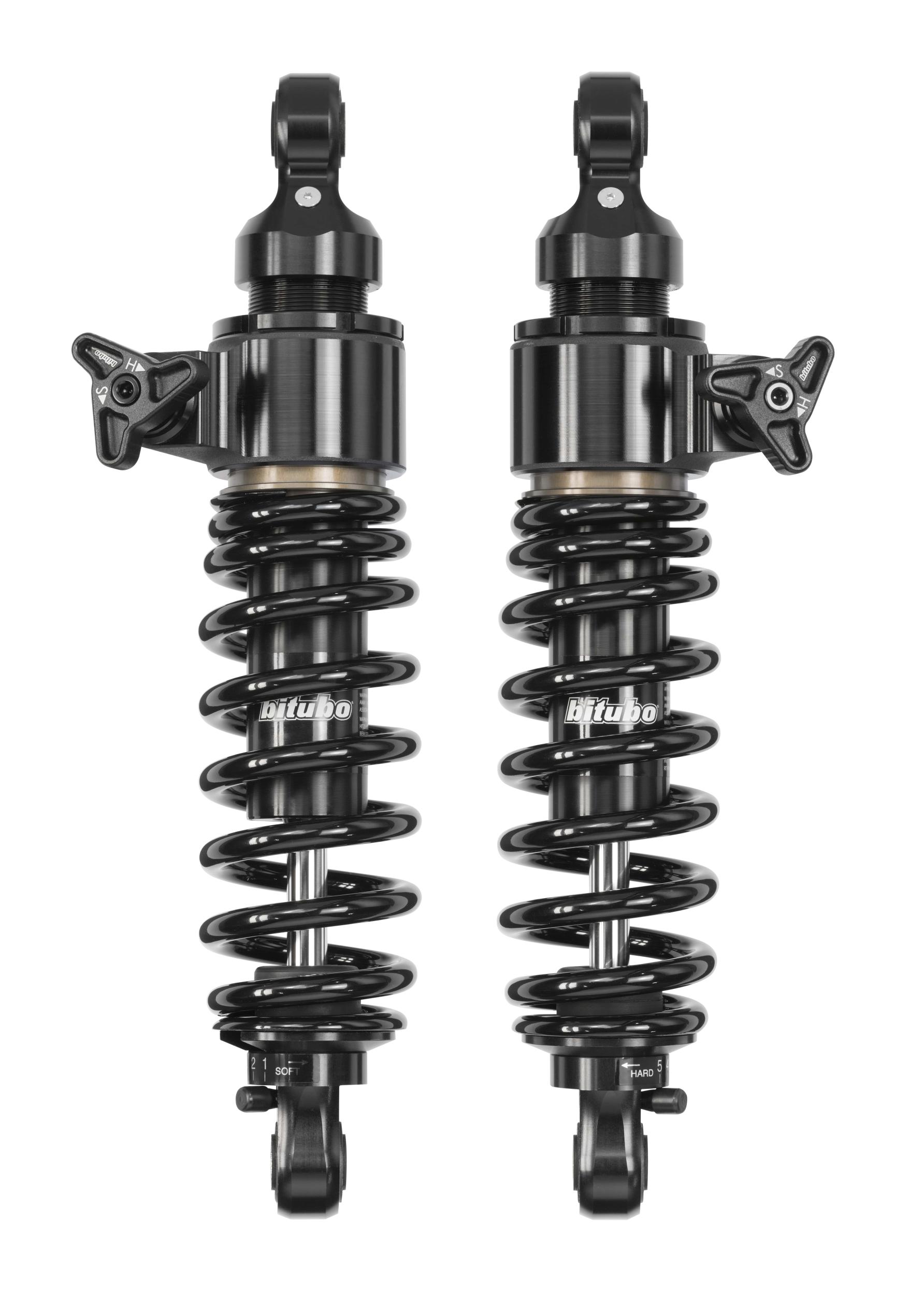

BITUBO stereo shock absorbers rear, 306mm long (12 inch), hydraulic spring preload, rebound damping adjustable; spring colour, mounting and body in black, for Harley Davidson (various models); also available with chrome caps at an extra charge! with ABE according to the application list

General Description

Nitrogen-filled single-tube gas-pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound adjustment range provides excellent performance in all riding situations, both solo and fully loaded. The damper body is made of high-strength steel, and the end caps are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - continuously adjustable, via adjusting ring
- Rebound - continuously adjustable, via adjusting lever

Each pair of shock absorbers comes with a Basic setting, which is tailored to the respective model.
Available with chrome head and foot with chrome spring or with black head and foot with black spring. Also available with chrome head and foot and black spring (discontinued models).

Additionally, chrome caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps): Article no. BI-GR9601
- Upper chrome caps (2 pieces): Article no. BI-GR9603
- Black upper chrome caps (2 pieces, black chromed): Article no. BI-GR9604
- Chrome cap set (2 pairs = 2 uppers and 2 lower chrome caps) black chromed: Article no. BI-GR9605
To do this, simply state the article number in the comments field when ordering. Please also indicate whether the chrome caps should be mounted.
