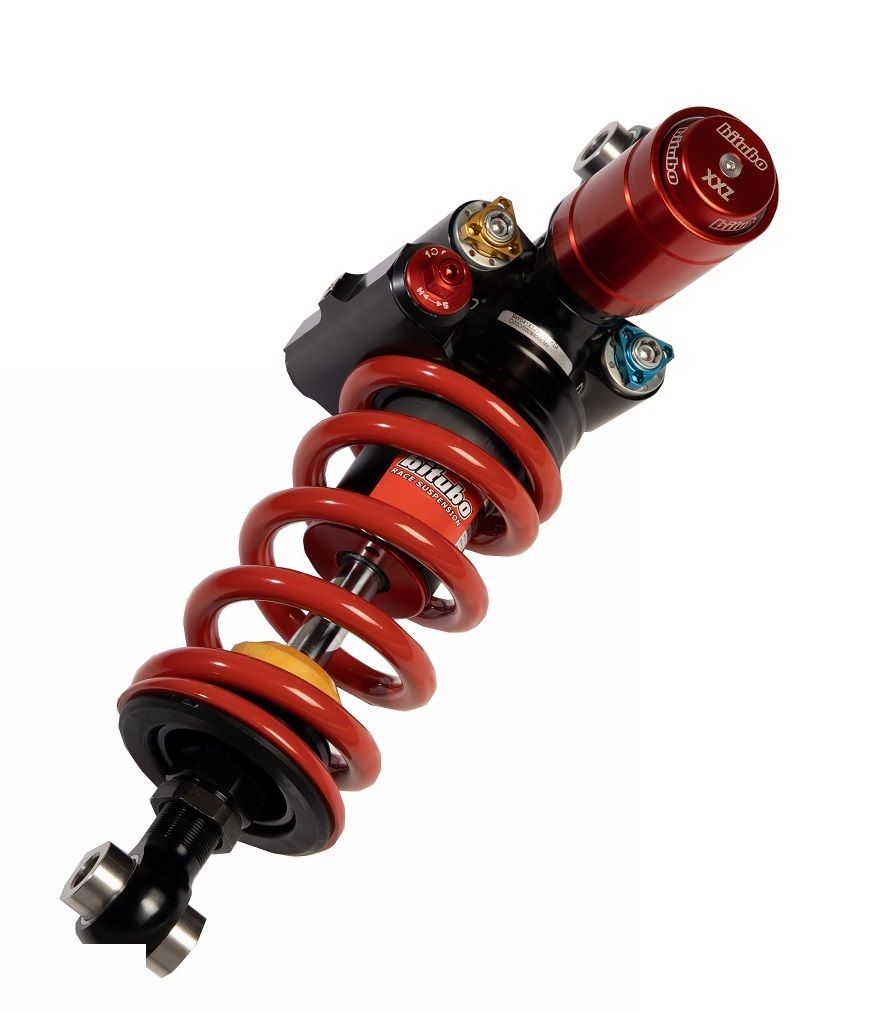

BITUBO shock absorber for Ducati Diavel V4 from model year 2023-

Product details

BITUBO mono shock absorber rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), compression damping damping high-speed (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in Red, without street approval.
For Ducati
Diavel V4, Type 3G, from model year 2023-

General description

XXZ mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXZ shock absorber is easy to adjust even when installed.

The development of this shock absorber culminates in a general weight reduction through the use of an aluminium casing – an important point for adapting the handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXZ with racing performance. An upgrade for optimised performance and simplification of length and hydraulicer spring preload adjustment has also been installed.

The aim is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the shock absorber. With technically new solutions, the damping coefficient and stability at high temperatures are improved.
By using a piston rod with a 14 mm diameter, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the shock absorber.


Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- High-Speed Rebound: 20 clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 clicks
- Adjustable Length: 8 mm
- Very light
