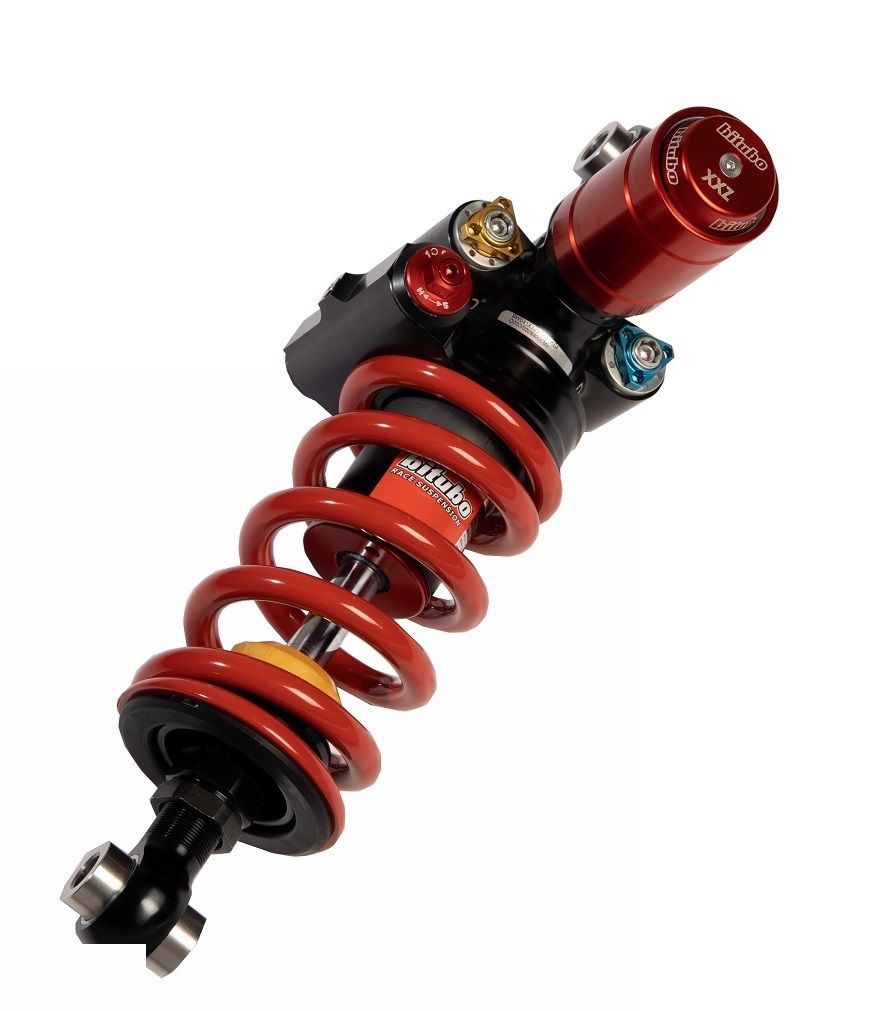

BITUBO shock absorber for Ducati 899 Panigale / 959 Panigale / 1199 Panigale / 1299 Panigale

Product Details

BITUBO mono rear, adjustable rebound damping (24 clicks), adjustable high-speed rebound (20 clicks), adjustable high-speed compression damping damping (20 clicks) and low-speed (24 clicks), adjustable length (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in red, with ABE
For Ducati
Panigale 899, Type H8, Model year 2013-14
Panigale 959, Type HA, Model year 2016- (without ABE)
Panigale 1199, Type H8, Model year 2012-15
Panigale 1299, Type H9, Model year 2015-17

General Description

XXZ Mono shock absorber – the direct evolution from racing. Thanks to the versatile adjustment options, the Bitubo XXZ shock absorber can be easily adapted even when installed.

The development of this rear culminates in a general weight reduction through the use of an aluminium housing – an important point to fine-tune the handling to the rider's requirements. Furthermore, a new set-up has been developed to focus the XXZ even more on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even during the hardest braking.

Innovation also prevails inside the rear. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14mm diameter piston rod, the sliding behaviour is improved, while the Ø30mm separator piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction of inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the rear.


Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- High-Speed Rebound: 20 clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 clicks
- Adjustable length: 8 mm
- Very light
