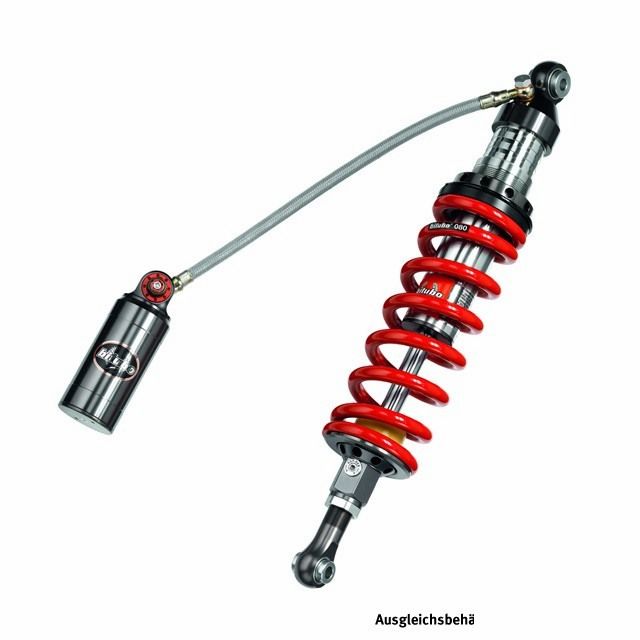

BITUBO shock absorber for Cagiva Raptor 1000 and V Raptor 1000

Product details

BITUBO mono shock absorber rear, with externa balance tank, adjustable rebound damping, adjustable compression damping damping in high and low speed, length adjustable by 8mm, continuously adjustable spring preload, spring colour red.
For Cagiva
Raptor 1000, Type M2, model year 2000-03
V-Raptor 1000, Type M2, model year 2000-03
X-Tra Raptor 1000, model year 2001-03

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. It is a gas-pressure supported shock absorber, with a separating piston for oil/nitrogen in the balance tank, a Ø16mm piston rod with anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made of an aluminium alloy, also used in aerospace - precisely CNC machined. The setting of the spring preload is hydraulic and can be done either manually or with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers ending with “2” have a black spring. For example, the shock absorber “CLU11” has a red spring, “CLU12” consequently has a black one.

Features CLU1:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
