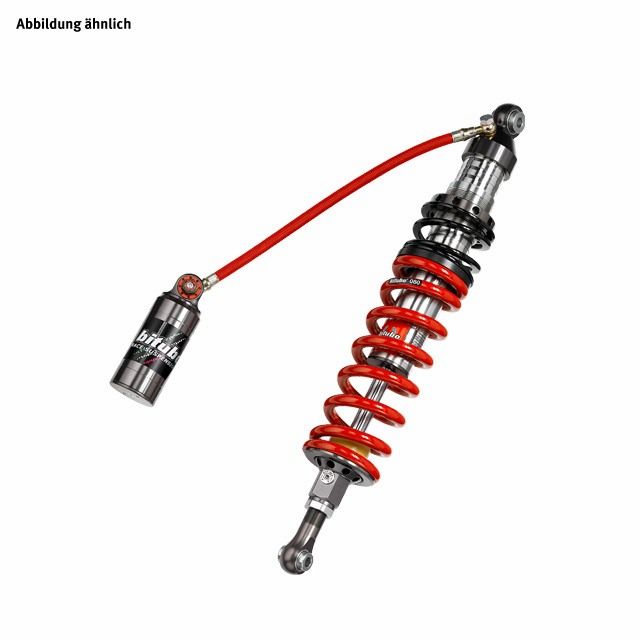

BITUBO shock absorber for BMW R850R and R1150R without ABS

Product details

BITUBO mono-shock absorber rear, with externa balance tank, rebound damping adjustable, compression dampingndämpfung adjustable in high and low speed, length adjustable by 8mm, spring preload 12mm hydraulic adjustable, spring colour black.
For BMW
R850R, type BMW259, model year 2003-07
R1150R, type R21, model year 2001-06
Only suitable for models without ABS!

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure assisted shock absorber, with a separating piston for oil/nitrogen in the balance tank, a Ø16mm piston rod with an anti-friction coating, and friction-minimised bushing. The lower and upper mountings are made from an aluminium alloy, as used in aviation – precisely CNC machined. The setting of the spring preload is hydraulic and can be carried out either manually or with a 14 mm HH screw.

The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the colour of the spring: ‘1’ stands for a red spring, while shock absorbers with the suffix ‘2’ have a black spring. For example, the shock absorber ‘CLU31’ has a red spring, and ‘CLU32’ consequently has a black one.

Features CLU3:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
