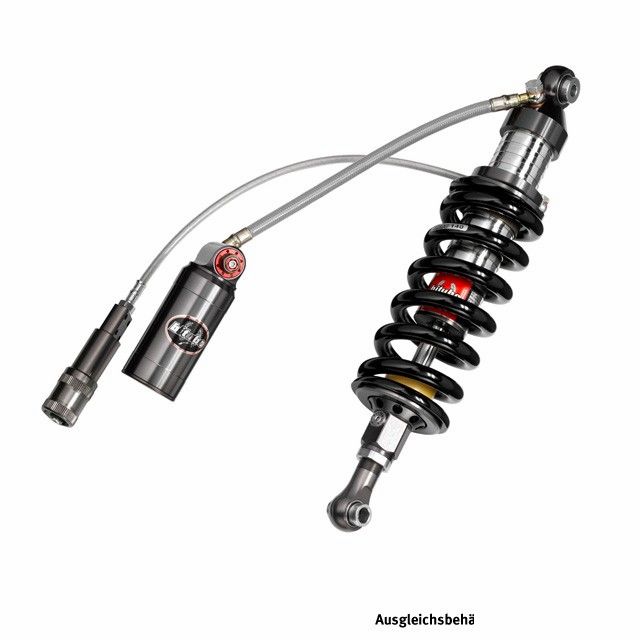

BITUBO shock absorber for BMW R850R and R1100R 94-

Product details

BITUBO mono shock absorber rear, with externa balance tank, adjustable rebound damping, adjustable compression damping damping in high and low speed, adjustable length 8mm, spring preload 12mm hydraulic adjustable, black spring colour.
For BMW
R850R, Type BMW259, model year 1994-2002
R1100R, Type BMW259, model year 1994-2001
Only suitable for models without ABS!

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. It is a gas-pressure assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston rod with anti-friction coating and friction-minimised bushing. The lower and upper mountings are made from an aluminium alloy, as used in aerospace – precisely CNC machined. The setting of the spring preload is hydraulic and can be done both manually and with a 14 mm HH screw.

The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers ending in “2” have a black spring. For example, the shock absorber “CLU31” has a red spring, and “CLU32” consequently has a black one.

CLU3 features:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
