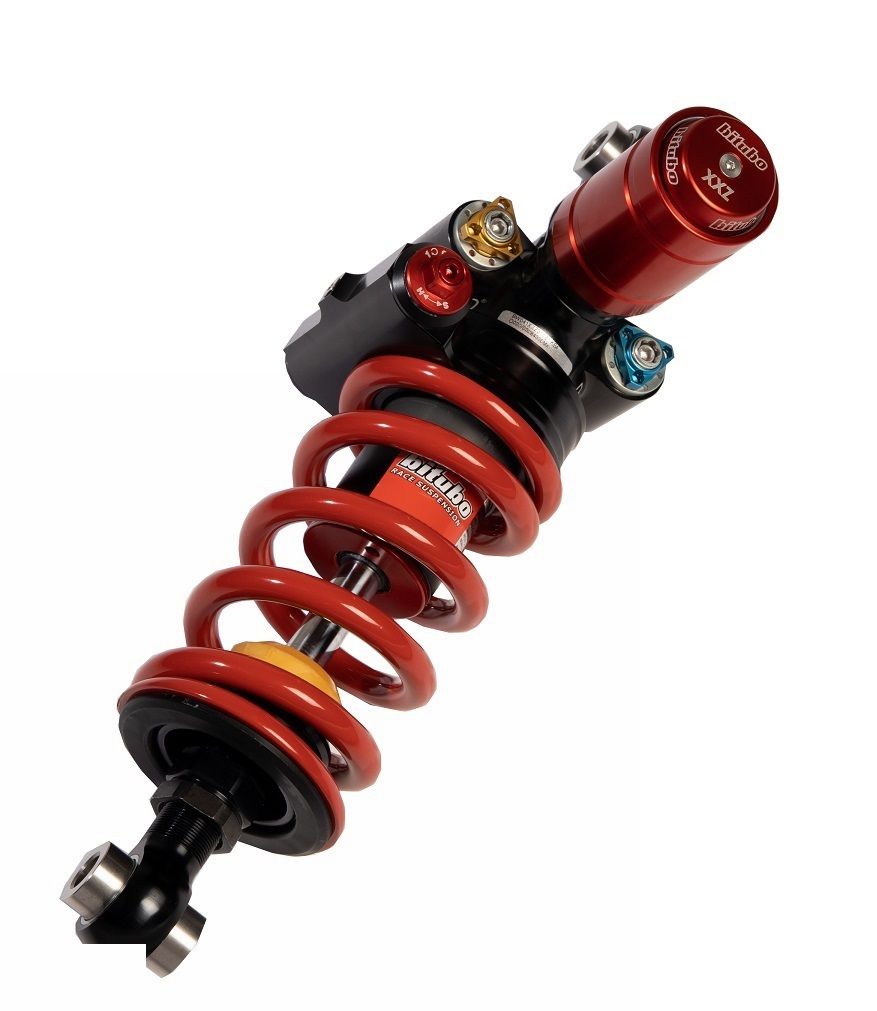

BITUBO shock absorber for Aprilia RSV4 / R / Factory / APRC, Type RK, from model year 2009-16

Product Details

BITUBO mono-shock absorber rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), compression damping damping high-speed (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in red
For Aprilia RSV4 / R / Factory / APRC, Type RK, from model year 2009-16
RSV4 RR /RF, Type KE, model year 2017

General Description

XXZ Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXZ shock absorber is easy to adapt even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium casing – an important point for tailoring the handling to the rider's requirements. Furthermore, a new set-up has been developed to focus the XXZ even more on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during fast changes of direction, as well as even tire wear. It offers greatest confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperatures are improved.
By using a piston rod with a 14 mm diameter, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction of inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to the improvement and simplification of the adjustment options, which are now all located in the upper part of the damper.


Features:
- compression damping Low-Speed: 24 Clicks
- compression damping High-Speed: 20 Clicks
- Rebound: 24 Clicks
- High-Speed Rebound: 20 Clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 Clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 Clicks
- Adjustable Length: 8 mm
- Very lightweight
