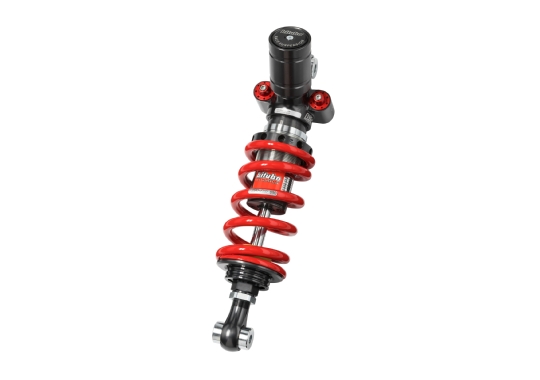

BITUBO shock absorber for Aprilia RSV4 / R / Factory / APRC, Type RK, from model year 2009-16

Product details

BITUBO monoshock rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload continuously adjustable, spring colour in Red
For Aprilia
RSV4 / R / Factory / APRC, Type RK, from model year 2009-16

General description

XXT Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber is easy to adjust even when installed.

The development of this damper culminates in an overall weight reduction through the use of an aluminium housing – a crucial point for tailoring the handling to the rider's requirements. Furthermore, a new set-up has been developed to further focus the XXT on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as even tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14 mm diameter piston rod, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces and thus enable immediate control of oscillating spring movements.


Features:
- compression damping: 24 clicks
- Rebound: 24 clicks
- High-speed rebound damping: 20 clicks
- XXT11 Manual spring preload: continuously adjustable
- Adjustable length: 8 mm
- Very lightweight
