BITUBO shock absorber for Aprilia RS250

Product details

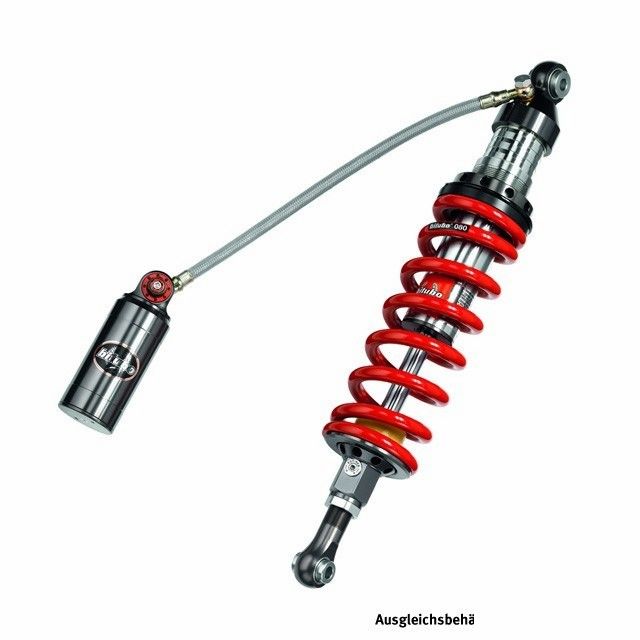

BITUBO mono shock absorber rear, with externa balance tank, adjustable rebound damping, compression damping damping adjustable in high and low speed, length adjustable by 8mm, spring preload 12mm hydraulic adjustable, spring colour red.
For Aprilia
RS250, type LD01, model year 1994-97
RS250, type LD, model year 1998-2001
Only suitable for models without ABS!

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure-assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston rod with anti-friction coating, and a friction-minimised bushing. The lower and upper mountings are made of an aluminium alloy, as used in aviation - precisely CNC machined. The setting of the spring preload is hydraulic and can be adjusted both manually and by a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the colour of the spring: "1" stands for a red spring, while shock absorbers ending with "2" have a black spring. For example, the "CLU31" shock absorber has a red spring, "CLU32" consequently has a black one.

CLU3 features:
- compression damping low-speed: 24 clicks
- compression damping high-speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
