BITUBO shock absorber for Aprilia RS250

Product details

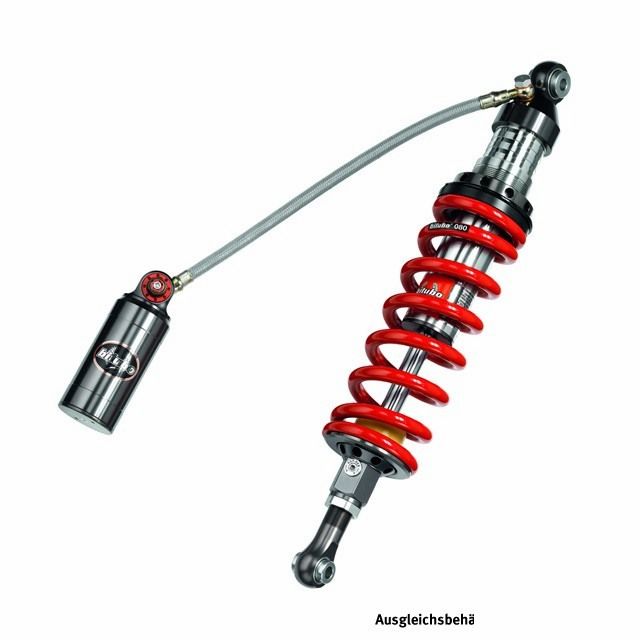

BITUBO mono rear shock absorber, with externa balance tank, adjustable rebound damping, adjustable compression damping damping in high- and low-speed, length adjustable by 8mm, spring preload continuously adjustable, spring colour red.
For Aprilia
RS250, type LD01, model year 1994-97
RS250, type LD, model year 1998-2001
Only suitable for models without ABS!

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sports motorcycles. It is a gas-pressurised shock absorber, with a separation piston for oil / nitrogen in the balance tank, a Ø16mm piston with an anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made from an aluminium alloy, as used in aviation – precisely CNC machined. The setting of the spring preload is hydraulic and can be done both manually and with a 14 mm HH screw.

The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: '1' stands for a red spring, while shock absorbers ending with '2' have a black spring. For example, the shock absorber "CLU11" has a red spring, and "CLU12" consequently has a black one.

CLU1 Features:
- Low-speed compression damping: 24 clicks
- High-speed compression damping: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
