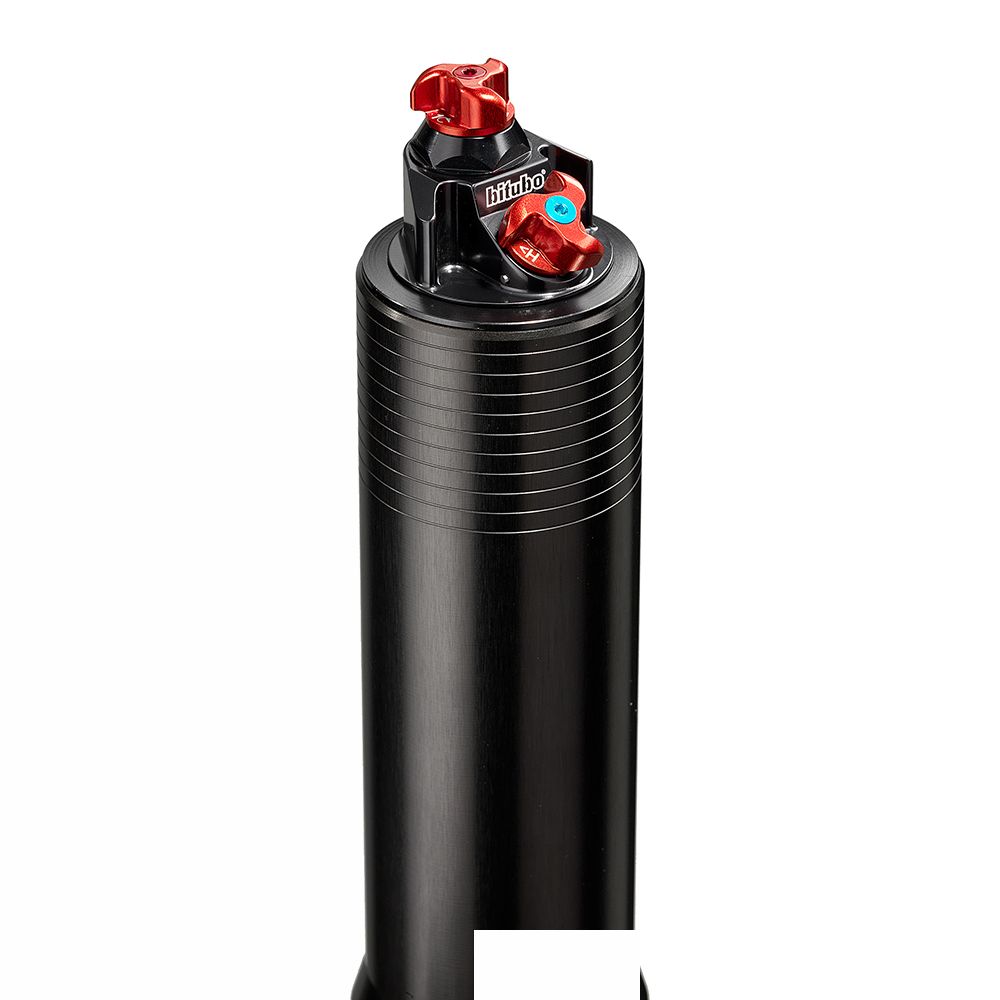

Bitubo motorcycle fork RDH SBK

Product details

BITUBO motorcycle fork legs RDH SBK, length 772mm, diameter for top triple clamp 52mm / lower 58mm, axle diameter 30mm, rebound damping adjustment 24-way adjustable, compression damping 24-way adjustable, spring preload 12mm adjustable, brake caliper mounting 108mm, Comp: GR05165, Reb: GR50182

General description

RDH, a gas-pressure assisted fork for the highest demands in racing: Dynamic control is achieved through the new ECH cartridge, which offers the technical solutions FPS®, EC and LC (LIGHT COMPONENTS). RDH surpasses previous technology with separate compensation chambers, adjustment elements on the fork feet, and sensitively reacting hydraulic systems. With the RDH fork, the control elements are placed in the upper area of the fork for quicker action: hydraulic spring preload, rebound and compression damping damping are split between two fork cartridges.

The unsprung masses on the motorcycle are reduced by its low weight. The dimension of the lower mounting reduces the radial forces on the stanchion for smooth gliding and a lower breakaway torque.

The goal:
To offer the rider on the front wheel the greatest stability, thanks to the reduction of fork torsion and improved feedback during hard braking until its release; perfect control of the compression speed even during the hardest braking, thanks to the FPS® system; increased mechanical grip when entering and exiting curves due to direct hydraulic control and the smooth gliding of the fork tube; more even tire wear.

Light Components:
This product is manufactured with a large proportion of special light alloys.

Features:
- Hydraulic piston Ø27 mm, made of aluminium
- with FPS® system
- with anti-friction coating.
- Mechanical polyurethane end stop
- spring made of CRSi steel
- Co-axial compensation chamber
- Aluminium fork cartridge
- with PTFE surface treatment
- compression damping 24 clicks
- Rebound 24 clicks
- hydraulic spring preload 12 mm - 6 clicks
- fork tube diameter: 52/58 mm
- Length 740 mm
- Weight 8,200 g
