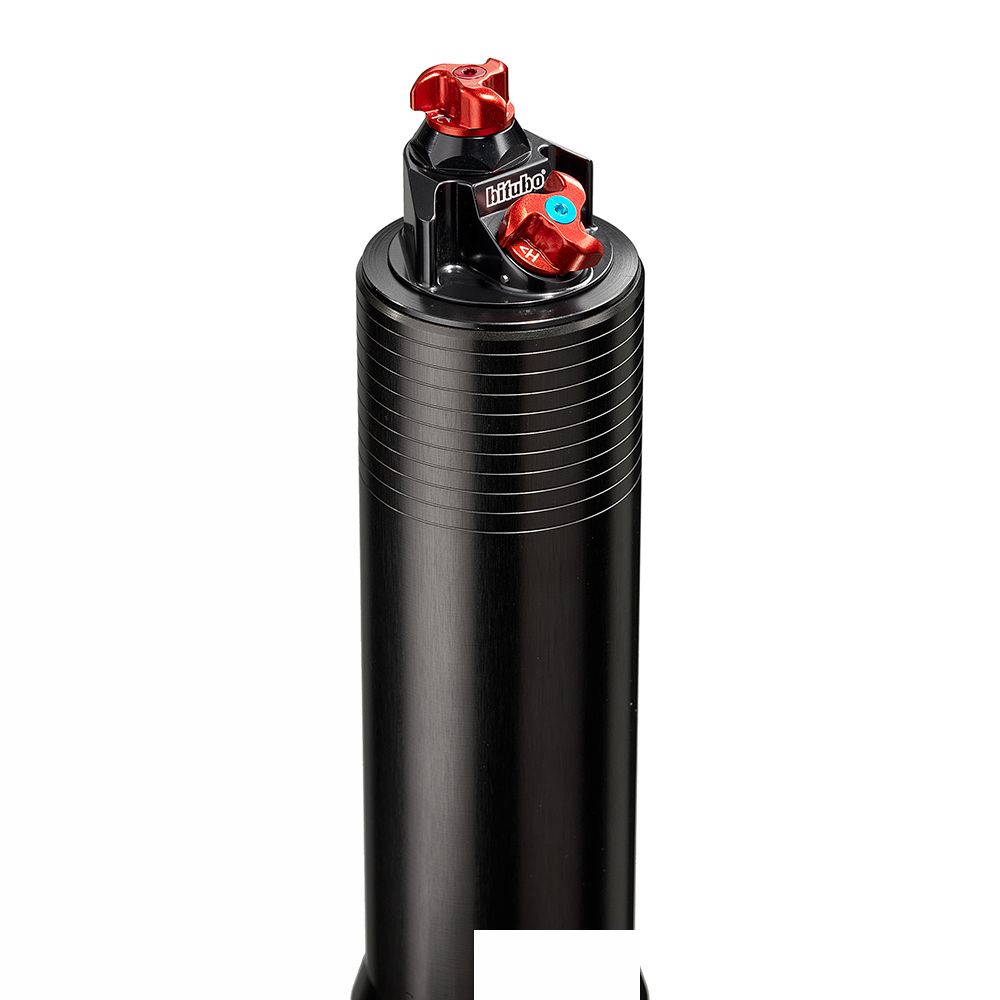

Bitubo motorcycle fork RDH SBK
€8,815.35 gross €9,279.32 RRP incl. VAT
Article number:
BI-FC016-RDH24
Product Details
BITUBO motorcycle fork stanchions RDH SBK, length 740mm, diameter for top triple clamp 52mm / bottom 58mm, suspension travel =130mm, spring rate K=0.95, axle diameter 30mm, rebound adjustment 24 clicks adjustable, compression damping 24 clicks adjustable, spring preload 12mm adjustable, brake caliper mount 108mm, Comp: GR05165, Reb: GR50182General Description
RDH, a gas-pressure supported fork for the highest demands in racing: Dynamic control is achieved through the new ECH cartridge, which offers the technical solutions FPS®, EC, and LC (LIGHT COMPONENTS). RDH surpasses previous technology with separate compensation chambers, adjustment elements on the fork feet, and highly responsive hydraulic systems. With the RDH fork, the control elements are placed in the upper area of the fork for faster action: hydraulic spring preload, rebound and compression damping damping are split between two fork cartridges.Unsprung masses on the motorcycle are reduced by its low weight. The dimension of the lower mounting reduces radial forces on the stanchion for smooth sliding and a lower breakaway torque.
The goal:
To offer the rider on the front wheel the greatest stability, thanks to the reduction of fork torsion and improved feedback during hard brake until release; perfect control of compression speed even during the hardest brake thanks to the FPS® system; increased mechanical grip when entering and exiting corners due to direct hydraulic control and smooth sliding of the fork tube; more even tire wear.
Light Components:
This product is manufactured with a large proportion of special light alloys.
Features:
- Hydraulic piston Ø27 mm made of aluminium
- with FPS® system
- with anti-friction coating.
- mech. polyurethane end stop
- springs made of CRSi steel
- coaxial compensation chamber
- fork cartridge made of aluminium
- with PTFE surface treatment
- compression damping 24 clicks
- Rebound 24 clicks
- hydraulic spring preload 12 mm - 6 clicks
- Diameter fork tubes: 52/58 mm
- Length 740 mm
- Weight 8,200 gr
| fork filter: | Forks |
|---|
| Manufacturer | Model | Type | Model Year | Variant/Version | Note | Position | ccm |
|---|---|---|---|---|---|---|---|
| BMW | S1000RR | K10 | 2009 - 2010 | 0507 - 0517 | front | 1000 | |
| BMW | S1000RR | K10 | 2012 - 2014 | 0524 - 0534 | with ABS | front | 1000 |
