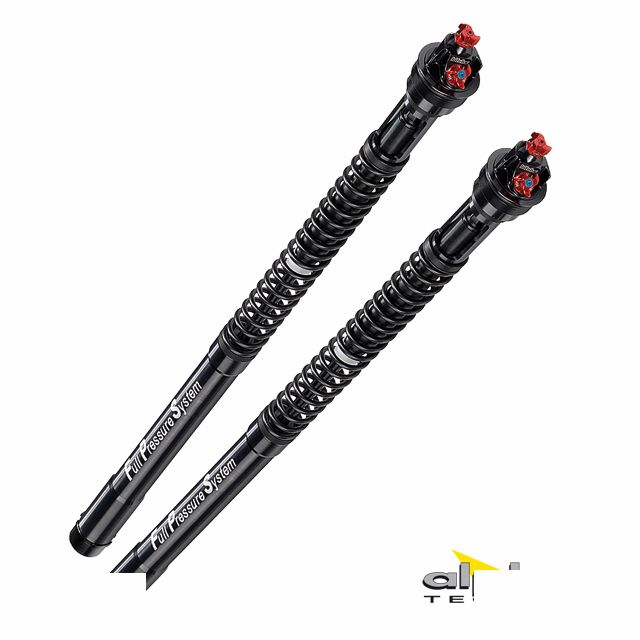

BITUBO fork Damper Kit for various Aprilia RSV4 and Tuono V4 R / APRC models
ABE
€1,657.61 gross €1,744.85 RRP incl. VAT
Article number:
BI-A0047-ECH29
Product details
BITUBO fork damper kit with springs, spring preload 12mm hydraulic adjustable, one leg with rebound damping adjustable in 24 clicks, one leg with compression damping damping adjustable in 24 clicks, with ABE.For Aprilia
RSV4 1000 R APRC, Type RK, Model year 2011-2014
RSV4 1000 R APRC, Type RK, Model year 2015-2015 (without ABE!)
RSV4 RR, Type RK, Model year 2015-18
RSV4 RR, Type KE, Model year 2017-2020 (without ABE!)
Tuono V4 R / APRC, Type TY, Model year 2011-13
General description
The ECH29 gas-pressurised fork cartridge contains a range of innovative features.Light Components:
This product is manufactured with a large proportion of special light alloy, significantly reducing the weight compared to the previous YCE fork cartridge.
On the upper end caps are the adjusters for the diverse adjustment options:
For the first time with Bitubo, spring preload is adjusted via hydraulic, while rebound and compression damping are distributed between the two fork cartridges, making adjustment simpler and easier.
The goal:
To offer the rider on the front wheel the greatest stability, achieved through perfect feedback from the front wheel, even under the heaviest strain on the brake and at extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Gliding at the highest level:
Each ECH 29 fork cartridge is supplied with synthetic oil from manufacturer FUCHS-Silkolene, which guarantees minimal friction.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-stick coating
- Polyurethane bottom-out bumper
- springs made of CRSi steel
- co-axial compensation chamber
- Hydraulic oil & sliding grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- hydraulic spring preload 12 mm - 6 turns
| fork filter: | Cartridge |
|---|---|
| Length in mm: | 695 |
Länge/length: 695 mm
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
| Manufacturer | Model | Additional designation | Type | Model year | Note | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|---|
| Aprilia | RSV4 1000 R | APRC ABS | RK | 2015 - 2015 | 1000 | |||
| Aprilia | RSV4 1000 R | APRC | RK | 2011 - 2012 | ABE | 1000 | ||
| Aprilia | RSV4 1000 R | APRC | RK | 2013 - 2014 | with ABS | ABE | 1000 | |
| Aprilia | RSV4 RR | KE EURO4 | 2018 - 2020 | 1000 | ||||
| Aprilia | RSV4 RR | KE EURO4 | 2017 - 2018 | ABE | 1000 | |||
| Aprilia | RSV4 RR | RK | 2015 - 2016 | ABE | 1000 | |||
| Aprilia | Tuono V4 R | TY | 2011 - 2013 | ABE | front | 1000 | ||
| Aprilia | Tuono V4 R | APRC | TY | 2011 - 2013 | ABE | front | 1000 |
