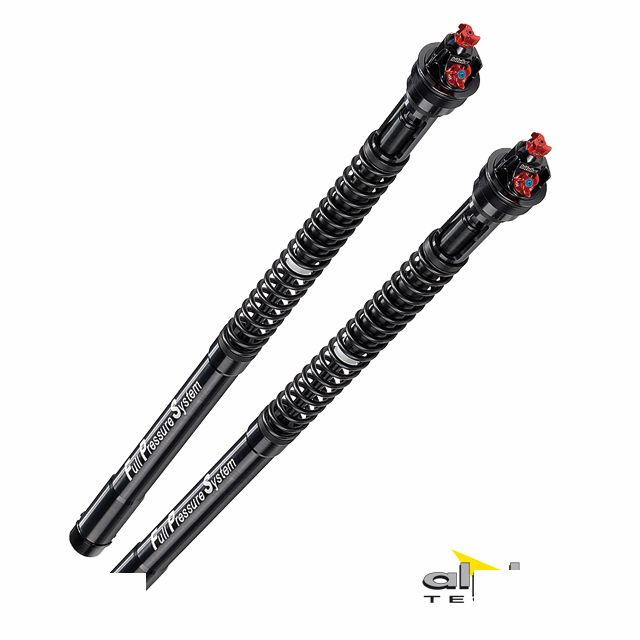

Bitubo fork damper kit for BMW RnineT

ABE

€1,657.61 gross €1,392.95 net €1,744.85 RRP incl. VAT

Article number: BI-BW050-ECH29

In ca. 15 working days

Product Details

BITUBO fork damper kit with spring, spring preload 12mm hydraulic adjustable, one leg with rebound damping 24 clicks adjustable, one leg with compression damping damping 24 clicks adjustable, with ABE.

For BMW

RnineT, type R1ST, model year 2013-16

RnineT, type 1N12, model year 2017-

General Description

The ECH29 gas-pressure supported fork cartridge features a range of innovative characteristics.

Light Components:

This product is manufactured with a high proportion of special light alloy, which significantly reduces the weight compared to the previous fork cartridge YCE.

The adjusters for the various setting options are located on the upper end caps:

The spring preload is set for the first time on Bitubo hydraulic, while the rebound and compression damping are distributed across the two fork cartridges, making adjustment simpler and easier.

The Goal:

To offer the rider the greatest stability on the front wheel, achieved through the perfect feedback from the front wheel, even under heavy brake stress and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.

Glide at the highest level:

Each fork cartridge ECH 29 is supplied with synthetic oil from the manufacturer FUCHS-Silkolene, guaranteeing minimal friction.

Features:

- Hydraulic piston with FPS® system - made from aluminium

- with anti-friction coating

- polyurethane bump stop

- spring made from CRSi steel

- co-axial compensation chamber

- hydraulic oil & sliding grease separated

- compression damping 24 clicks

- rebound 24 clicks

- hydraulic spring preload 12 mm - 6 turns
