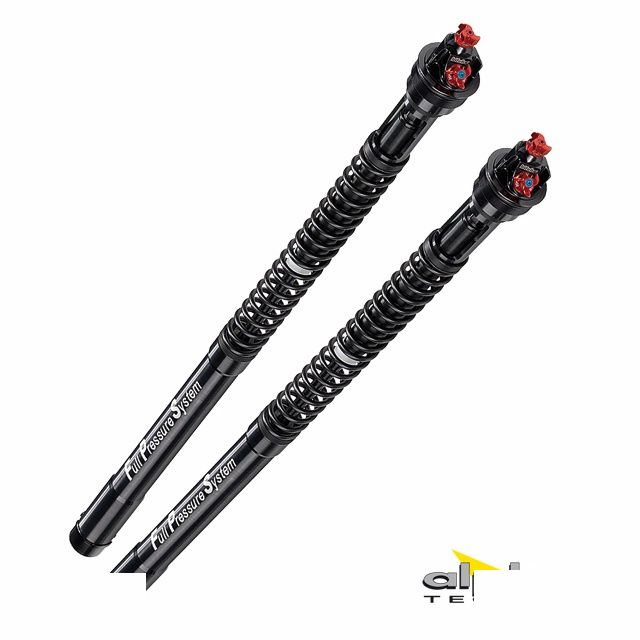

Bitubo fork Cartridge Kit for Suzuki GSXR750 WVBD
ABE
€1,657.61 gross €1,744.85 RRP incl. VAT
Article number:
BI-S0075-ECH29
Product Details
BITUBO fork Cartridge Kit with springs, spring preload 12mm hydraulic adjustable, one leg with rebound damping 24 clicks adjustable, one leg with compression damping damping 24 clicks adjustable, with ABE; for Suzuki GSXR750 Type: WVBD (model year 2000-2003)General Description
The ECH29 gas-pressure-assisted fork cartridge features a series of innovative attributes.Light Components:
This product is manufactured with a high proportion of special light alloys, which significantly reduces the weight compared to the previous YCE fork cartridge.
The adjusters for the diverse setting options are located on the upper end caps:
For the first time with Bitubo, the spring preload is adjusted via hydraulic, while rebound and compression damping are separated into the two fork cartridges, making adjustment simpler and easier.
The Goal:
To offer the rider on the front wheel the greatest stability, achieved through perfect feedback from the front wheel, even under heavy brake use and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Top-Level Gliding:
Each ECH 29 fork cartridge is supplied with synthetic oil from the manufacturer FUCHS-Silkolene, which guarantees minimal friction.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-stick coating
- Polyurethane end stop
- springs made of CRSi steel
- Co-axial compensation chamber
- Hydraulic oil & lubricating grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- hydraulic spring preload 12 mm - 6 turns
| fork filter: | Cartridge |
|---|---|
| Length in mm: | 340 |
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|
| Suzuki | GSX-R750 | WVBD | 2000 - 2003 | ABE | front | 750 | 2 |
