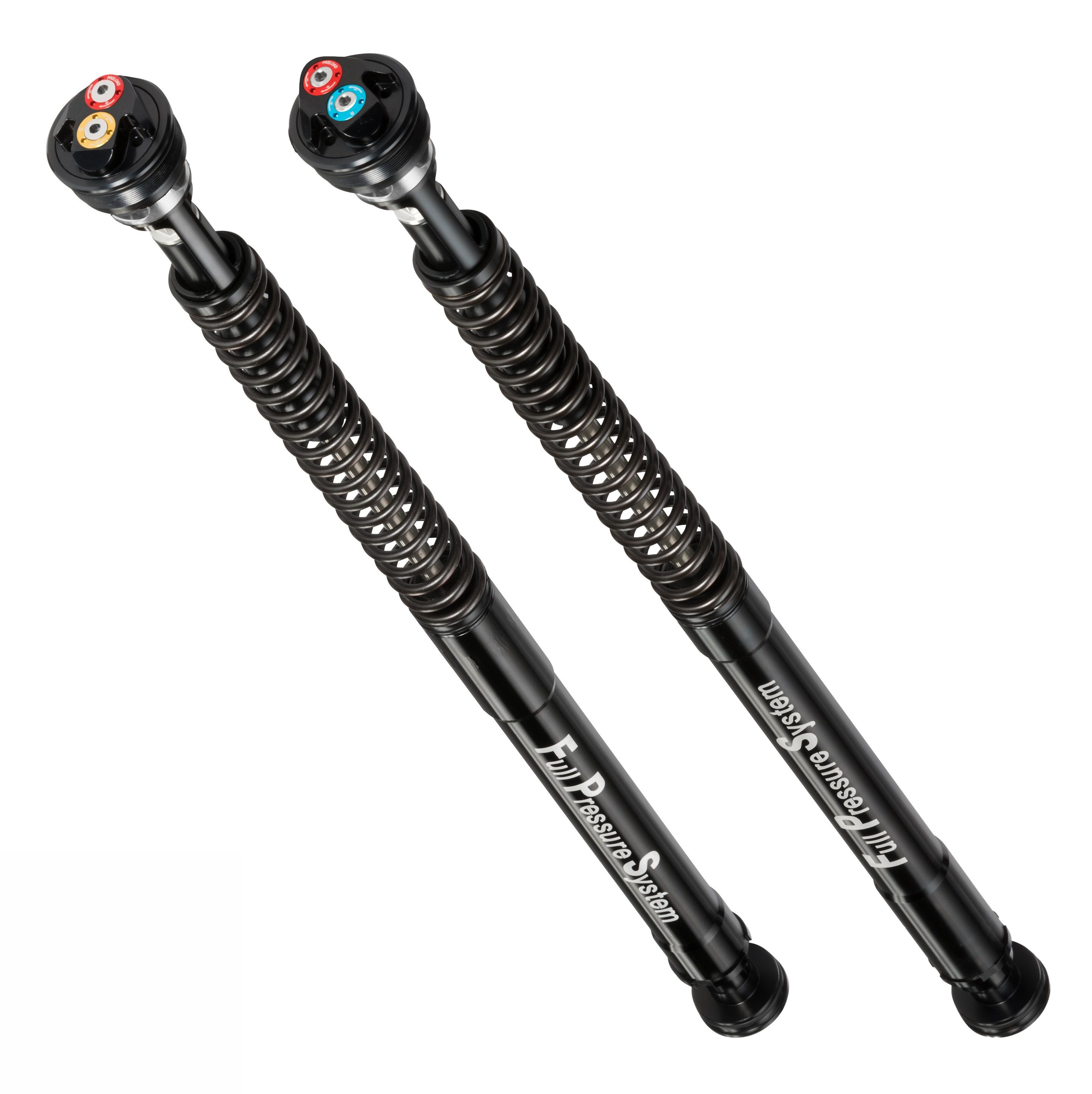

BITUBO Cartridge Kit for Yamaha MT09 from model year 2021 onwards
€2,092.56 gross €2,202.69 RRP incl. VAT
Article number:
BI-Y0162-EBH09
Product details
BITUBO closed cartridge kit with springs, spring preload 15mm (15 turns) adjustable, one fork leg with rebound damping adjustable to 24 clicks, one fork leg with compression dampingn damping adjustable to 24 clicks; for Yamaha MT09, type RN69. From model year 2021 onwards.General description
The EBH gas-assisted closed cartridge incorporates a range of innovative features.Lightweight components:
This product is manufactured with a high proportion of special light alloys, which significantly reduces the weight.
The adjusters for the various setting options are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while rebound and compression dampingn are split between the two cartridges, making adjustment simpler and easier.
The objective:
To offer the rider maximum stability on the front wheel, achieved through perfect feedback from the front wheel, even under the heaviest loads on the brakes and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Glide at the highest level:
Each EBH cartridge kit is supplied with 1 liter of synthetic oil from the manufacturer FUCHS-Silkolene, which guarantees minimal friction.
Features:
- Hydraulic piston with FPS system - made of aluminium
- With anti-friction coating
- Polyurethane bump stop
- springs made of CRSi steel
- Co-axial compensating chamber
- Hydraulic oil & sliding grease separated
- compression dampingn 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
- Two additional replacement springs with different stiffness rates for various setups
Scope of Delivery
- Cartridge with springs
- The package contains 2 additional replacement springs with
different stiffness rates for various setups,
to achieve the best control at the highest
power, performances levels
- 1 liter of oil
- Wrench for tightening the cartridge cap
- 2x cartridge fixing wrenches
| Manufacturer | Model | Additional designation | Type | Model year | ccm |
|---|---|---|---|---|---|
| Yamaha | MT09 | SP | RN69 EURO5 | 2021 - | 900 |
| Yamaha | MT09 | RN69 EURO5 | 2021 - | 900 |
