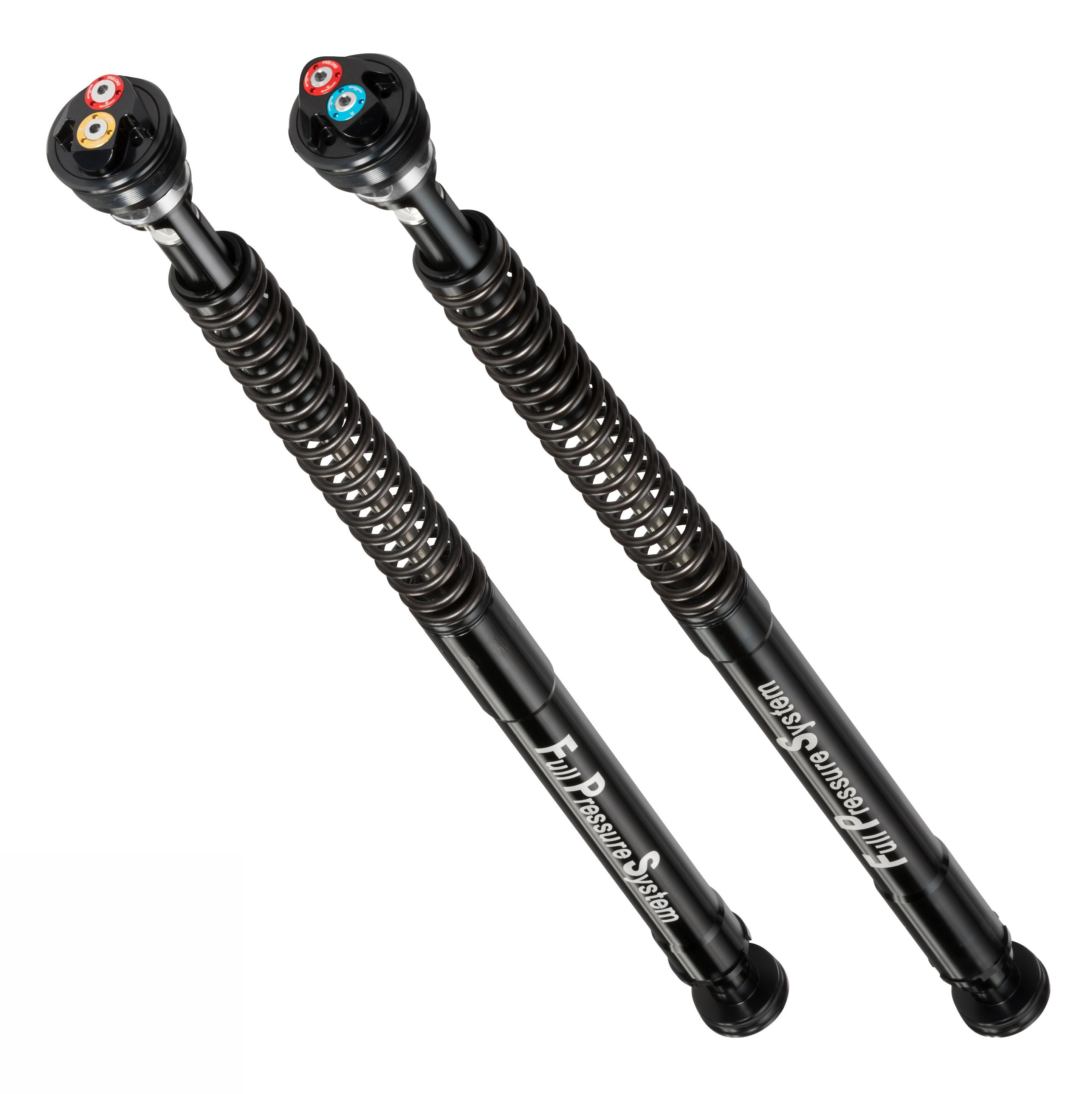

BITUBO Cartridge Kit for Kawasaki Z H2 Model Year 2020
€2,092.56 gross €2,202.69 RRP incl. VAT
Article number:
BI-K0112-EBH09
Product Details
BITUBO fork damper kit with springs, spring preload 12mm hydraulic adjustable, one leg with rebound damping 24 clicks adjustable, one leg with compression damping damping 24 clicks adjustable; for Kawasaki Z H2, type ZRT00K, model year 2020General Description
The EBH gas-pressurised cartridge contains a range of innovative features such as the well-known FPS, EC, LC, and the new OPC (over pressure control) system.Light Components:
This product is manufactured with a large proportion of special light alloys, which significantly reduces the weight compared to the previous fork cartridge YCE.
On the upper end caps, the adjusters for the diverse adjustment options for spring preload, extension and compression, which differ between the two cartridges, are simple and intuitive to operate.
The Goal:
To offer the rider on the front wheel the greatest stability, achieved through perfect feedback from the front wheel, even under the heaviest loads on the brakes and in extreme lean angles. Due to the direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Supreme Glide:
Each fork cartridge EBH09 is supplied with synthetic oil from the manufacturer FUCHS-Silkolene, guaranteeing minimal friction.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- Ø 10mm pump rod with low-friction surface coating
- Polyurethane end stop
- springs made of CRSi steel
- Co-axial compensation chamber
- Independent damping adjustment for compression and rebound
- Hydraulic oil & lubricating grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- hydraulic spring preload 12 mm - 6 turns
| fork filter: | Cartridge |
|---|
Scope of Delivery
- Cartridge with springs
- The package contains 2 additional replacement springs with
different stiffness rates for various setups,
to achieve the best control at the highest
power, performance levels
- 1 liter oil
- Spanner for tightening the cartridge cap
- 2x Cartridge fixing spanner
| Manufacturer | Model | Additional Designation | Type | Model Year | Position | ccm |
|---|---|---|---|---|---|---|
| Kawasaki | Z H2 | SE | ZRT00K | 2021 - | fronte | 1000 |
| Kawasaki | Z H2 | ZRT00K | 2020 - | fronte | 1000 | |
| Kawasaki | Z H2 | Performance | ZRT00K | 2020 - | fronte | 1000 |
