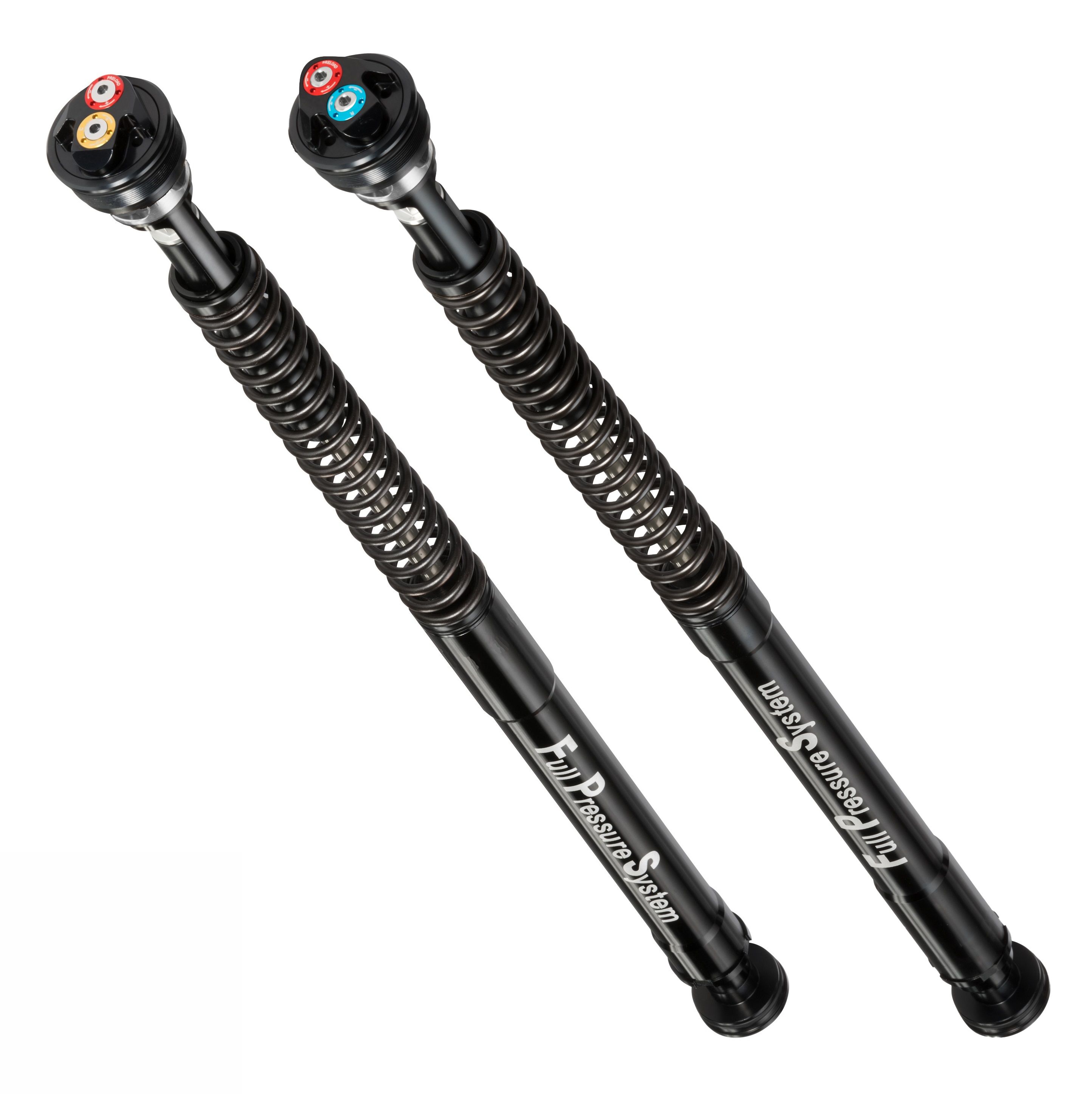

BITUBO Cartridge Kit for Ducati 848 / EVO 2008-12, 1098 2007-08 and 1198 2009-11
€2,092.56 gross €2,202.69 RRP incl. VAT
Article number:
BI-D0031-EBH09
Product details
BITUBO Cartridge Kit with springs, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable in 24 clicks, one leg with compression damping damping adjustable in 24 clicks; for Ducati848 / Evo, Type H6, model year 2008-12
1098, Type H7, model year 2007-08
1198, Type H7, model year 2009-11
General description
The EBH gas-assisted cartridge contains a range of innovative features.Light Components:
This product is manufactured with a high proportion of special light alloys, which significantly reduces weight.
On the upper end caps are the adjusters for the various adjustment options:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping damping have been split between the two cartridges, making adjustment simpler and easier.
The goal:
To offer the rider on the front wheel the greatest stability, achieved through the perfect feedback from the front wheel, even under the heaviest strain on the brakes and in extreme lean angles. Due to the direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Gliding at the highest level:
Each EBH Cartridge Kit is supplied with 1 liter of synthetic oil from the manufacturer FUCHS-Silkolene, which guarantees minimal friction.
Features:
- Hydraulic piston with FPS system - made of aluminium
- With anti-friction coating
- Polyurethane end stop
- springs made of CRSi steel
- Co-axial compensation chamber
- Hydraulic oil & lubricating grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
- Two additional spare springs with different stiffness rates for various setups
| fork filter: | Cartridge |
|---|
Length: 695 mm
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
Scope of Delivery
- Cartridge with springs
- The package contains 2 additional spare springs with
different stiffness rates for the various setups,
to achieve the best control at the highest
power, performance levels
- 1 liter of oil
- Spanner for tightening the cartridge cap
- 2x cartridge fixing spanner
| Manufacturer | Model | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|
| Ducati | 1098 | H7 | 2007 - 2008 | ABE in preparation | front | 1098 |
| Ducati | 1198 | H7 | 2009 - 2011 | ABE in preparation | front | 1198 |
| Ducati | 848 | H6 | 2008 - 2010 | ABE in preparation | front | 848 |
| Ducati | 848 Evo | H6 | 2011 - 2012 | ABE in preparation | front | 848 |
