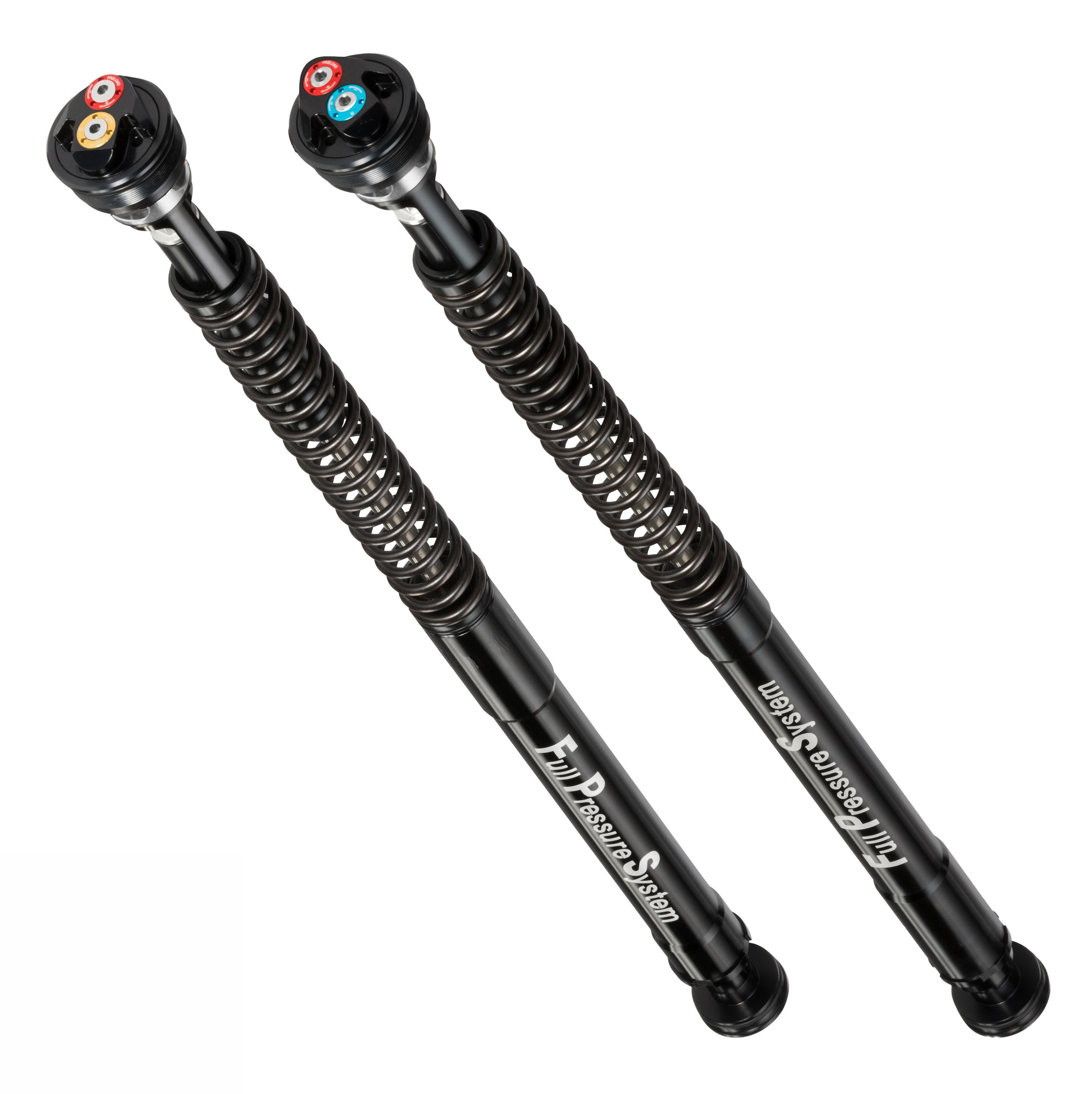

BITUBO Cartridge Kit for Aprilia RSV4 Factory model year 2009-10 / RSV4 Factory APRC 2011-14 and RSV4 RF model year 2015-16
€2,092.56 gross €2,202.69 RRP incl. VAT
Article number:
BI-A0043-EBH09
Product details
BITUBO Cartridge Kit with springs, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable 24 clicks, one leg with compression damping damping adjustable 24 clicks; for ApriliaRSV4 Factory, type RK, model year 2009-10
RSV4 RF, type RK, model year 2015-16
RSV4 Factory APRC ABS, type RK, model year 2011-14
General description
The EBH gas-pressurised cartridge contains a range of innovative features.Light Components:
This product is manufactured with a large proportion of special light alloys, significantly reducing weight.
On the upper end caps are the adjusters for the various setting options:
The spring preload can be adjusted over 15 turns, while rebound and compression damping are distributed between the two cartridges, making adjustment simpler and easier.
The objective:
To offer the rider maximum stability on the front wheel, achieved through perfect feedback from the front wheel, even under the heaviest strain on the brakes and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Gliding at the highest level:
Each EBH Cartridge Kit is delivered with 1 liter of synthetic oil from the manufacturer FUCHS-Silkolene, guaranteeing minimal friction.
Features:
- hydraulic piston with FPS system - made of aluminium
- with anti-friction coating
- polyurethane bump stop
- springs made of CRSi steel
- co-axial compensation chamber
- hydraulic oil & grease separated
- compression damping 24 clicks
- rebound 24 clicks
- spring preload 15 mm - 15 turns
- two additional replacement springs with different stiffness rates for various setups
| fork filter: | Cartridge |
|---|
Length/length: 695 mm
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
spring rate 1.05kg/mm (harder than original 0.95kg/mm)
Scope of Delivery
- Cartridge with springs
- The package contains 2 additional replacement springs with
different stiffness rates for various setups,
to achieve the best control at the highest
power, performance levels
- 1 liter oil
- wrench for tightening the cartridge cap
- 2x cartridge fixing wrench
| Manufacturer | Model | Additional designation | Type | Model year | Variant/Version | Position | ccm |
|---|---|---|---|---|---|---|---|
| Aprilia | RSV4 1000 | Factory APRC ABS | RK | 2011 - 2014 | 1000 | ||
| Aprilia | RSV4 1000 | Factory | RK | 2009 - 2010 | RK000 / RK001/ RKC00 | front | 1000 |
| Aprilia | RSV4 RF | RK | 2015 - 2016 | front | 1000 |
