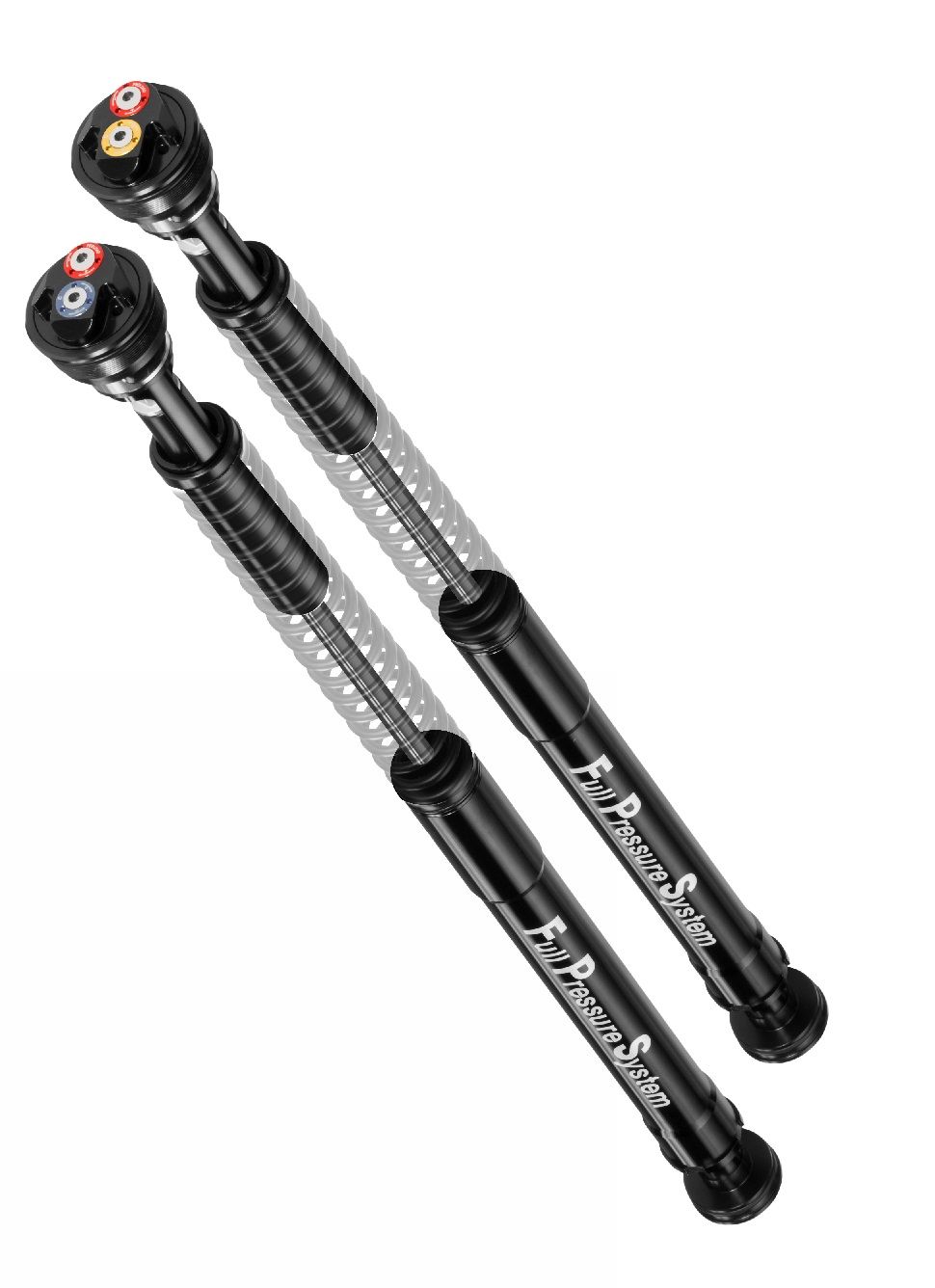

BITUBO Cartridge for Yamaha MT-09 2014-20, XSR900 2016-20, MT-09 Tracer 2015-17 and Tracer 900 / GT 2017-20
€1,257.69 gross €1,323.88 RRP incl. VAT
Article number:
BI-Y0145-EBH00WO
Product details
BITUBO closed cartridge without springs, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable 24 clicks, one leg with compression damping damping adjustable 24 clicks; for YamahaMT-09, Type RN29 / RN43, Model year 2014-20
XSR900, Type RN43, Model year 2016-20
MT-09 Tracer, Type RN29, Model year 2015-17
Tracer 900, Type RN43 / RN57, Model year 2017-20
Tracer 900 GT, Type RN57, Model year 2018-20
General description
The EBH gas-pressurised closed cartridge contains a range of innovative features.Light Components:
This product is manufactured with a high proportion of special light alloys, which significantly reduces weight.
The adjusters for the various setting options are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping have been split between the two cartridges, making adjustment simpler and easier.
The Goal:
To offer the rider the greatest stability on the front wheel, achieved through perfect feedback from the front wheel, even under the most extreme stress on the brakes and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-stick coating
- Polyurethane end stop
- co-axial compensation chamber
- Hydraulic oil & lubricating grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
| fork filter: | Cartridge |
|---|
| Manufacturer | Model | Additional designation | Type | Model Year | Note | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|---|
| Yamaha | MT09 | RN29 | 2014 - 2016 | with and without ABS | ABE in preparation | front | 900 | |
| Yamaha | MT09 | RN43 EURO4 | 2017 - 2020 | ABE in preparation | front | 900 | ||
| Yamaha | MT09 Tracer | RN29 | 2015 - 2016 | with ABS | ABE in preparation | front | 900 | |
| Yamaha | Tracer 900 | RN43 EURO4 | 2017 - 2017 | ABE in preparation | front | 900 | ||
| Yamaha | Tracer 900 | GT | RN57 EURO4 | 2018 - 2020 | ABE in preparation | front | 900 | |
| Yamaha | Tracer 900 | RN57 EURO4 | 2018 - 2020 | ABE in preparation | front | 900 | ||
| Yamaha | XSR900 | RN43 EURO4 | 2016 - 2020 | ABE in preparation | front | 900 |
