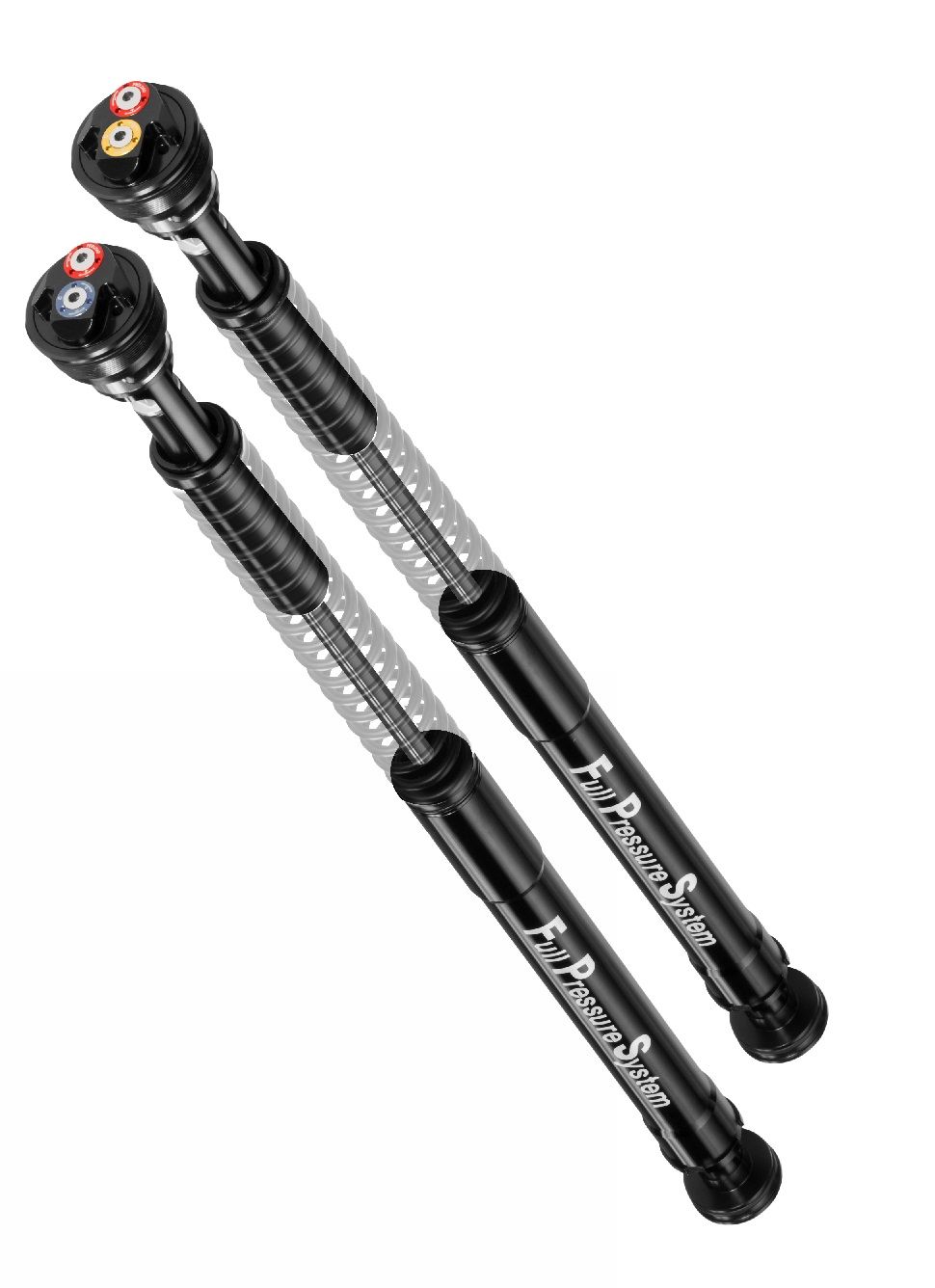

BITUBO Cartridge for Yamaha FZ1 and FZ1 Fazer 2006-12
€1,257.69 gross €1,323.88 RRP incl. VAT
Product details
BITUBO closed cartridge without spring, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable to 24 clicks, one leg with compression damping adjustable to 24 clicks; for Yamaha FZ1 and FZ1 Fazer, Type RN16, model year 2006-'12.General description
The EBH gas-assisted closed cartridge features a range of innovative characteristics.Light Components:
This product is manufactured with a significant proportion of special light alloy, which considerably reduces weight.
The adjusters for the diverse settings are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping are separated into the two cartridges, making adjustment simpler and easier.
The objective:
To offer the rider maximum stability on the front wheel, achieved through perfect feedback from the front wheel, even under the heaviest strain on the brake and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Features:
- Hydraulic piston with FPS® system - made from aluminium
- with anti-friction coating
- polyurethane bump stop
- co-axial compensation chamber
- hydraulic oil & grease separated
- compression damping 24 clicks
- rebound 24 clicks
- spring preload 15 mm - 15 turns
| fork filter: | Cartridge |
|---|
| Manufacturer | Model | Type | Model Year | Variant/Version | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Yamaha | FZ1 | RN16 | 2011 - 2011 | RN16H | ABE pending | front | 1000 |
| Yamaha | FZ1 | RN16 | 2006 - 2009 | RN165 | ABE pending | front | 1000 |
| Yamaha | FZ1 Fazer | RN16 | 2006 - 2010 | RN161 | ABE pending | front | 1000 |
| Yamaha | FZ1 Fazer | RN16 | 2011 - 2012 | RN168 and RN169 | ABE pending | front | 1000 |
