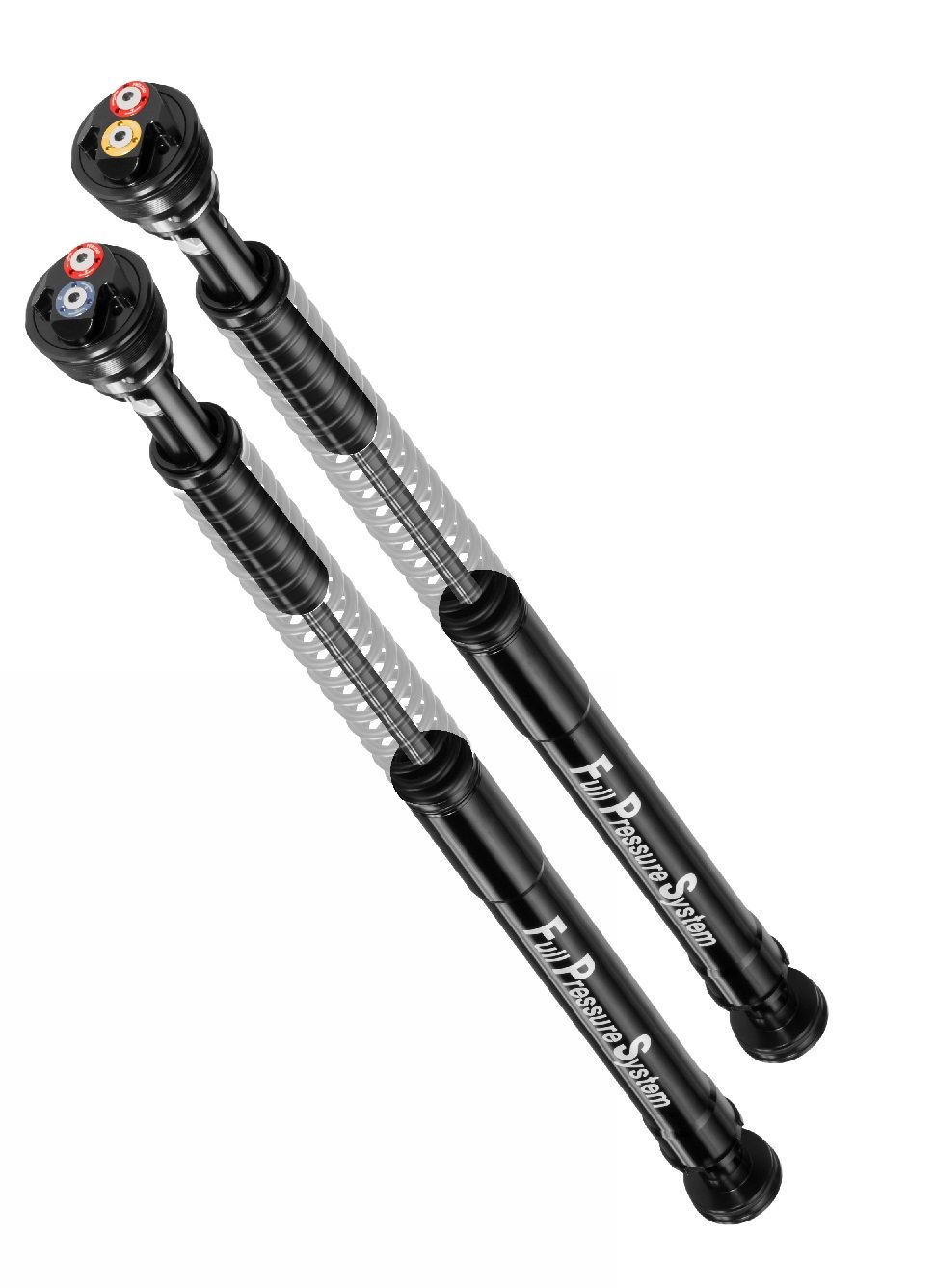

BITUBO Cartridge for MV Agusta F4 1000 / 312R / 312RR 2004-08 and Brutale 750 / 910S 2003-08
€1,257.69 gross €1,323.88 RRP incl. VAT
Article number:
BI-MV003-EBH00WO
Product Details
BITUBO closed cartridge without spring, spring preload 15mm (15 turns) adjustable, one leg with rebound damping adjustable in 24 clicks, one leg with compression damping damping adjustable in 24 clicks; for MV AgustaF4 1000 /312R /312RR, model year 2004-08
Brutale 750, Type F4, model year 2003-05
Brutale 910S, Type F4, model year 2005-08
General Description
The EBH gas-pressurised closed cartridge contains a range of innovative features.Light Components:
This product is manufactured with a high proportion of special light alloy, which significantly reduces weight.
On the upper end caps are the adjusters for the various setting options:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping have been divided between the two cartridges, making adjustment simpler and easier.
The Goal:
To offer the rider the greatest stability on the front wheel, achieved through perfect feedback from the front wheel, even under the heaviest strain on the brake and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.
Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-friction coating
- Polyurethane end stop
- co-axial compensation chamber
- Hydraulic oil & grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
| fork filter: | Cartridge |
|---|
| Manufacturer | Model | Type | Model Year | Position | ccm |
|---|---|---|---|---|---|
| MV Agusta | Brutale 750 | F4 | 2003 - 2005 | front | 750 |
| MV Agusta | Brutale 910S | F4 | 2005 - 2008 | front | 910 |
| MV Agusta | F4 1000 | F5 | 2004 - 2005 | front | 1000 |
| MV Agusta | F4 1000 312R | F5 | 2007 - 2008 | front | 1000 |
| MV Agusta | F4 1000 312RR | F5 | 2007 - 2008 | front | 1000 |
