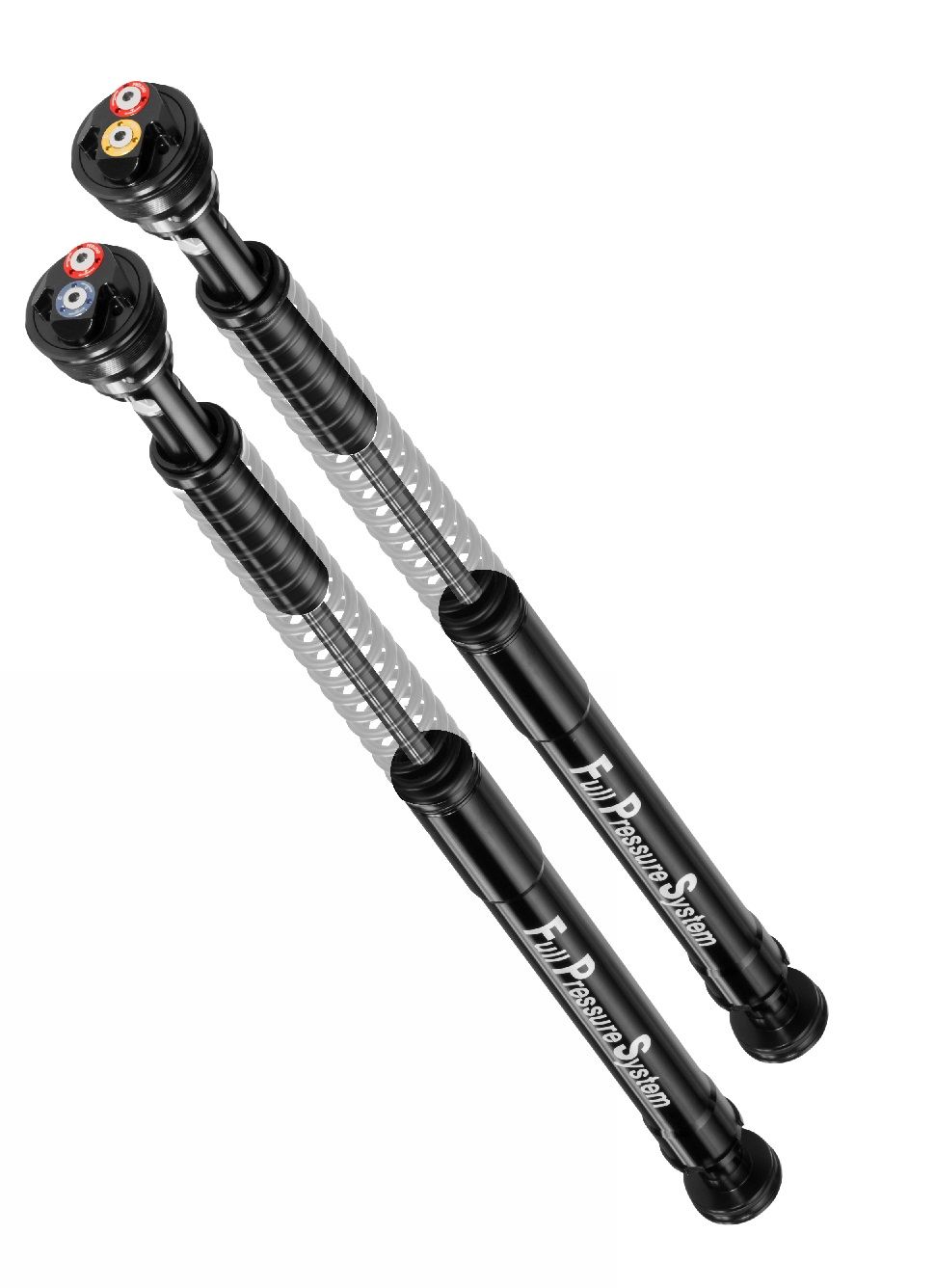

BITUBO Cartridge for KTM RC8 / R 1190 2008-16

Sample image - item may vary

€1,257.69 gross €1,056.88 net €1,323.88 RRP incl. VAT

Article number: BI-KT002-EBH00WO

In ca. 15 working days

Product details

BITUBO closed cartridge without springs, spring preload 15mm (15 turns) adjustable, one fork leg with rebound damping adjustable 24 clicks, one fork leg with compression damping damping adjustable 24 clicks; for KTM 1190 RC8 / R, type KTM RC8, model year 2008-16

General description

The EBH gas-assisted closed cartridge incorporates a range of innovative features.

Light Components:
This product is manufactured with a high proportion of special light alloys, significantly reducing its weight.
The adjusters for the various setting options are located on the upper end caps:
The spring preload can be adjusted over 15 turns, while the rebound and compression damping have been split between the two cartridges, making adjustment simpler and easier.

The Goal:
To offer the rider on the front wheel the greatest stability, achieved through perfect feedback from the front wheel, even under the heaviest loads on the brakes and in extreme lean angles. Due to direct hydraulic control, grip is increased when entering and exiting a corner, and more even tire wear is achieved.

Features:
- Hydraulic piston with FPS® system - made of aluminium
- with anti-friction coating
- Polyurethane end stop
- Co-axial compensation chamber
- Hydraulic oil & lubricating grease separated
- compression damping 24 clicks
- Rebound 24 clicks
- spring preload 15 mm - 15 turns
