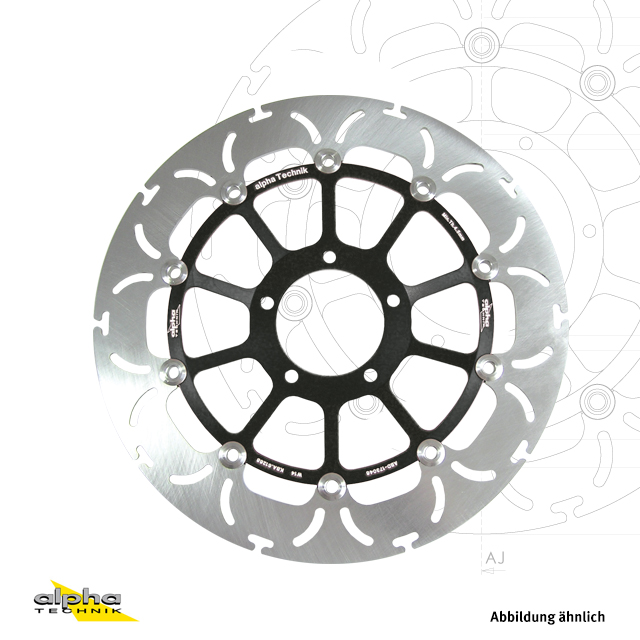

alpha Technik brake disc Omega-Design ABD33, Front Wheel for Suzuki GSX-R1000 2003-2004, GSX-R750, GSX-R600 2004-2005
€209.00 gross
Article number:
ABD-172019-MM
Product details
alpha Technik brake disc ABD33 floating (Da=300mm, Di=69.2mm, PCD=91mm), inner hub black anodised aluminium, outer ring steel with Omega-design, with ABEGeneral description
aBD³³Developed for the toughest conditions in racing, tested for durability in the IDM, and now available for you: the alpha Technik brake disc "aBD³³" – naturally with ABE.
The appearance is more than just design. The perforations in the friction ring are specifically designed. The overlap of the openings ensures continuous cleaning of the contact surface between the brake pad and brake disc. This prevents dirt accumulation and optimises ventilation for outgassing brake pads. The brake pad lies evenly and flat against the friction ring throughout the entire rotational movement. The contact surface also remains constant.
This is made possible by the geometry and alignment of the ventilation openinges. The uniform contact prevents one-sided wear of the brake pad, even under extreme loads. The harmonious stress on the lining material prevents premature wear.
The result is clear feedback to the rider; the braking process becomes more transparent and predictable, thereby fostering confidence in one's own brake system.
Features:
- Full Floating washer*
- Outer ring made of special steel
- Plane-parallel grinding
- Inner ring aluminium, CNC-milled
- Optimal friction values
- Even wear
- Long service life
- With ABE
*Full floating washer always dependent on the vehicle (note item description!)
| Bolt circle diameter in mm: | 91 |
|---|---|
| Inner ring in mm: | 69,2 |
| Outer diameter in mm: | 300 |
| Manufacturer | Model | Type | Model Year | Note | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|---|
| Suzuki | GSX-R1000 | WVBZ | 2003 - 2004 | without ABS | ABE | Front wheel | 1000 | 2 |
| Suzuki | GSX-R600 | WVB2 | 2004 - 2005 | ABE | Front wheel | 600 | 2 | |
| Suzuki | GSX-R750 | WVB3 | 2004 - 2005 | ABE | Front wheel | 750 | 2 |
