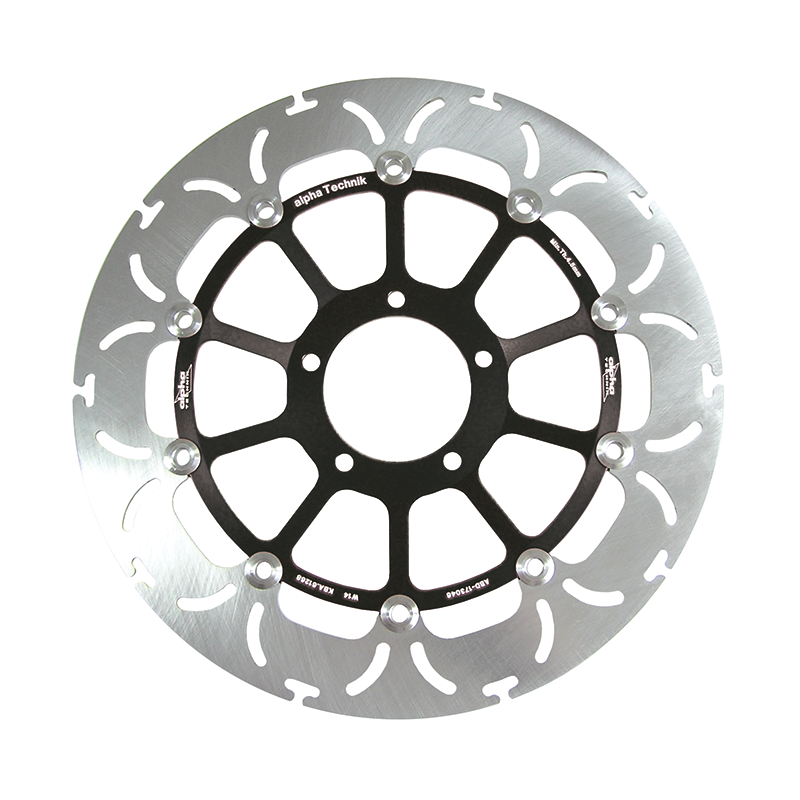

alpha Technik brake disc Omega-Design ABD33, front for Yamaha FZ1 / Fazer, VMax, YFZ-R1
€209.00 gross
Article number:
ABD-172043-MM
Product details
alpha Technik brake disc ABD33 floating (outer diameter=320mm, inner diameter=132.2mm, bolt circle=150mm), black anodised aluminium inner ring, steel outer ring with Omega-Design, with ABEGeneral description
aBD³³Developed for the toughest conditions in racing, tested for durability in the IDM, and now available for you: the alpha Technik brake disc "aBD³³" – naturally with ABE.
The look is more than just design. The perforations in the friction ring are specifically designed. The overlapping openings ensure constant cleaning of the contact surface between brake pad and brake disc. This prevents dirt accumulation and optimises ventilation of outgassing brake pads. The brake pad rests evenly and flat on the friction ring throughout the entire rotational movement. Likewise, the contact surface remains constant.
This is made possible by the geometry and alignment of the ventilation openings. The even contact prevents one-sided wear of the brake pad, even under extreme load. Harmonious stressing of the lining prevents premature wear.
The result is clear feedback to the rider; the braking process becomes more transparent and predictable, thereby fostering confidence in one's own brake system.
Features:
- Full Floating washer*
- Special steel outer ring
- Plane-parallel grinding
- CNC-milled aluminium inner ring
- Optimal friction values
- Even wear
- Long service life
- With ABE
*Full Floating washer depending on the vehicle (please refer to the product name!)
| Bolt circle diameter in mm: | 150 |
|---|---|
| Inner ring in mm: | 132,2 |
| Outer diameter in mm: | 320 |
| Manufacturer | Model | Additional designation | Type | Model year | Note | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|---|---|
| Yamaha | FZ1 | RN16 | 2006 - 2016 | with and without ABS | ABE | Front | 1000 | 2 | |
| Yamaha | FZ1 Fazer | RN16 | 2006 - 2016 | with and without ABS | ABE | Front | 1000 | 2 | |
| Yamaha | V Max | RP21 | 2009 - 2016 | with ABS | ABE | Front | 1700 | 2 | |
| Yamaha | V Max | RP21 | 2009 - 2016 | without ABS | ABE | Front | 1700 | 2 | |
| Yamaha | YZF-R1 | RN12 | 2004 - 2006 | ABE | Front | 1000 | 2 | ||
| Yamaha | YZF-R1 | SP | RN12 | 2006 - 2006 | ABE | Front | 1000 | 2 |
