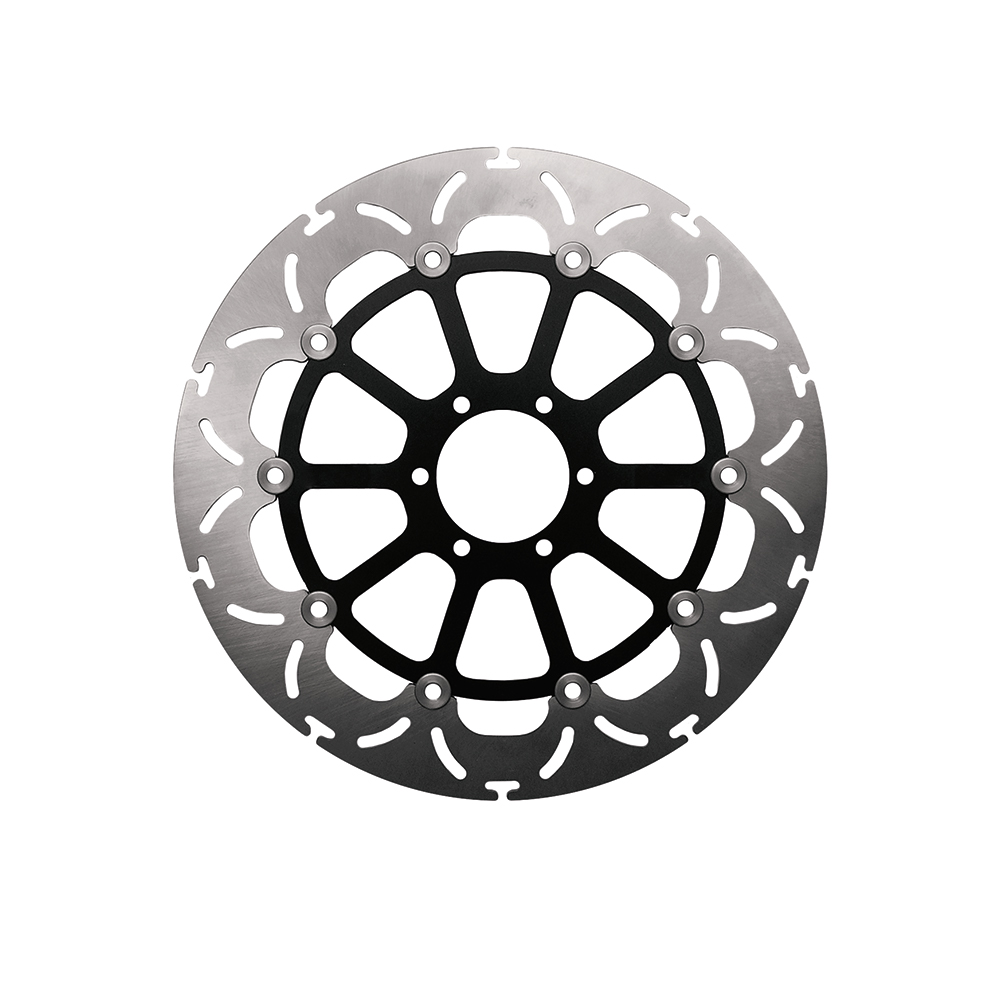

alpha Technik brake disc Omega-Design ABD33, front for Suzuki DL1000 / DL650 V-Strom, SV1000 and Kawasaki KLV 1000

Product details

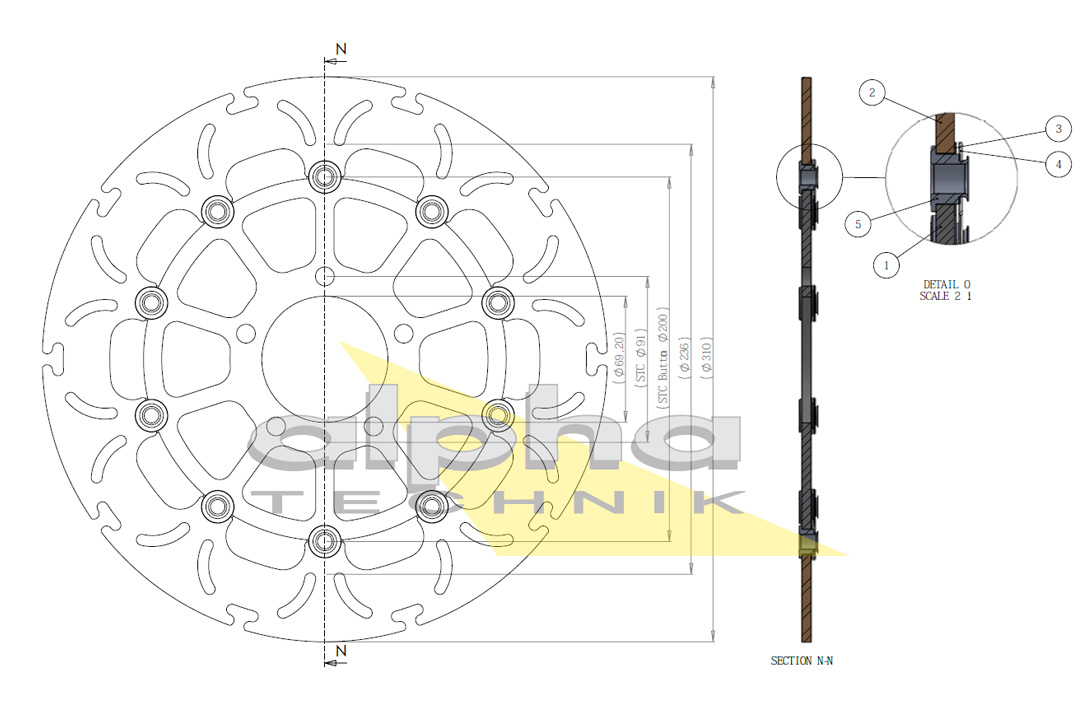

alpha Technik brake disc ABD33 floating (outer dia.=310mm, inner dia.=69.2mm, bolt circle=91mm), inner ring aluminium black anodised, outer ring steel with Omega-design, with ABE

General Description

aBD³³
Developed for the toughest conditions in racing, tested for durability in the IDM, and now available to you: the alpha Technik brake disc 'aBD³³' – naturally with ABE.

The appearance is more than just mere design. The perforations in the friction ring are specifically designed. The overlap of the openings ensures continuous cleaning of the contact surface between brake pad and brake disc. This prevents dirt accumulation and optimises ventilation for outgassing brake pads. The brake pad rests evenly and flat on the friction ring throughout the entire rotational movement. The contact surface also remains constant.

This is made possible by the geometry and alignment of the ventilation openingen. The even contact prevents one-sided wear of the brake pad, even under extreme load. The harmonious stress on the lining prevents premature wear.

The result is clear feedback to the rider; the braking process becomes more transparent and predictable, thereby enhancing confidence in one's own brake system.

Features:
- Full Floating washer*
- Outer ring made of special steel
- Plane-parallel grinding
- Inner ring aluminium, CNC-milled
- Optimal friction values
- Even wear
- Long service life
- With ABE

*Full Floating washer depending on the vehicle (please refer to the product name!)
