alpha Technik brake disc Omega-Design ABD33, Front for Suzuki DL1000 / DL650, GSF 1200 / 1250 / 650 Bandit, GSR 600 / 750, GSX

€209.00 gross €175.63 net

Article number: ABD-172059-MM

Immediately available

Product Details

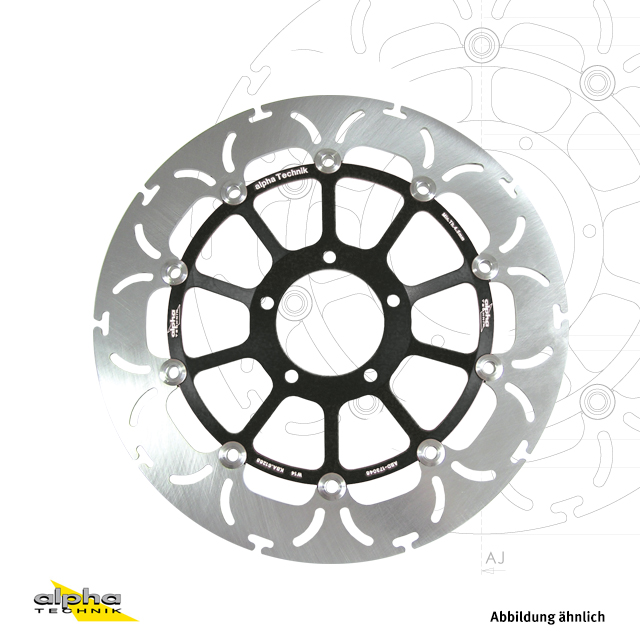

alpha Technik brake disc ABD33 floating (Da=310mm, Di=121.7mm, PCD=142mm), inner hub black anodised aluminium, outer ring steel with Omega design, with ABE

General Description

aBD³³ Developed for the toughest racing conditions, tested for durability in the IDM and now available for you: the alpha Technik brake disc "aBD³³" – naturally with ABE. The appearance is more than just design. The perforations in the friction ring are specifically designed. The overlap of the openings ensures continuous cleaning of the contact surface between the brake pad and the brake disc. This prevents dirt accumulation and optimises the venting of outgassing brake pads. The brake pad lies evenly and flat on the friction ring throughout the entire rotation. The contact surface also remains constant. This is made possible by the geometry and alignment of the ventilation openingen. The even contact prevents one-sided wear of the brake pades, even under extreme load. Premature wear is prevented by the harmonious stress on the lininges. The result is clear feedback to the rider, the braking process becomes more transparent and predictable, thus promoting confidence in the brake system. Features: - Full Floating washer* - Special steel outer ring - Parallel ground finish - Inner ring aluminium, CNC-milled - Optimal friction values - Even wear - Long service life - With ABE *Full Floating washer is dependent on the vehicle (please note article designation!)

Bolt circle diameter in mm:	142
Inner ring in mm:	121,7
Outer diameter in mm:	310

Manufacturer	Model	Additional Designation	Type	Model Year	Note	Homologation	Position	ccm	from km/h	from kW	Number of brake discs
Suzuki	DL1000 V-Strom		DD	2014 - 2016	with ABS	ABE	Front	1000			2
Suzuki	DL1000 V-Strom	XT	WDD0 EURO4	2017 -		ABE	Front	1000			2
Suzuki	DL1000 V-Strom		WDD0 EURO4	2017 -		ABE	Front	1000			2
Suzuki	DL650 V-Strom	XT	C7	2015 - 2016	with ABS	ABE	Front	650			2
Suzuki	DL650 V-Strom		C7	2011 - 2014	with ABS	ABE	Front	650			2
Suzuki	DL650 V-Strom		WC70 EURO4	2017 -		ABE	Front	650			2
Suzuki	DL650 V-Strom	XT	WC70 EURO4	2017 -		ABE	Front	650	185	52	2
Suzuki	DL650 V-Strom		WC71 EURO4	2017 -	OEM 35 kW variant	ABE	Front	650			2
Suzuki	DL650 V-Strom	XT	WC71 EURO4	2017 -	OEM 35 kW variant	ABE	Front	650	140	35	2
Suzuki	DL650 V-Strom		WVB1	2006 - 2007	with ABS	ABE	Front	650			2
Suzuki	DL650 V-Strom		WVB1	2009 - 2011	with ABS	ABE	Front	650			2
Suzuki	DL650 V-Strom		WVB1	2008 - 2008		ABE	Front	650			2
Suzuki	GSF1200 Bandit		WVCB	2006 - 2008	with ABS	ABE	Front	1200			2
Suzuki	GSF1200 Bandit S		WVCB	2006 - 2006		ABE	Front	1200			2
Suzuki	GSF1250 Bandit		WVCH	2007 - 2011		ABE	Front	1250			2
Suzuki	GSF1250 Bandit S		WVCH	2007 - 2017	with ABS	ABE	Front	1250			2
Suzuki	GSF1250 Bandit S		WVCH	2007 - 2017	without ABS	ABE	Front	1250			2
Suzuki	GSF1250 Bandit S		WVCH	2007 - 2010	without ABS	ABE	Front	1250			2
Suzuki	GSF650 Bandit		WVCZ	2009 - 2012	without ABS	ABE	Front	650			2
Suzuki	GSF650 Bandit		WVCZ	2009 - 2012	with ABS	ABE	Front	650			2
Suzuki	GSF650 Bandit S		WVCJ	2008 - 2008		ABE	Front	650			2
Suzuki	GSF650 Bandit S		WVCJ	2008 - 2008	with ABS	ABE	Front	650			2
Suzuki	GSF650 Bandit S		WVCZ	2009 - 2014	with ABS	ABE	Front	650			2
Suzuki	GSF650 Bandit S		WVCZ	2009 - 2014	without ABS	ABE	Front	650			2
Suzuki	GSR600		WVB9	2006 - 2011	with and without ABS	ABE	Front	600			2
Suzuki	GSR750		C5	2011 - 2016	with and without ABS	ABE	Front	750			2
Suzuki	GSX1250F		WVCH	2010 - 2017	with and without ABS	ABE	Front	1250			2
Suzuki	GSX1300 B-King		WVCR	2008 - 2011	with and without ABS	ABE	Front	1340			2
Suzuki	GSX1300R Hayabusa		WVCK	2008 - 2017		ABE	Front	1300			2
Suzuki	GSX650F		WVCJ	2008 - 2015	with and without ABS	ABE	Front	650			2
Suzuki	GSX-S 750		WC50 EURO4	2017 -		ABE	Front	750			2
