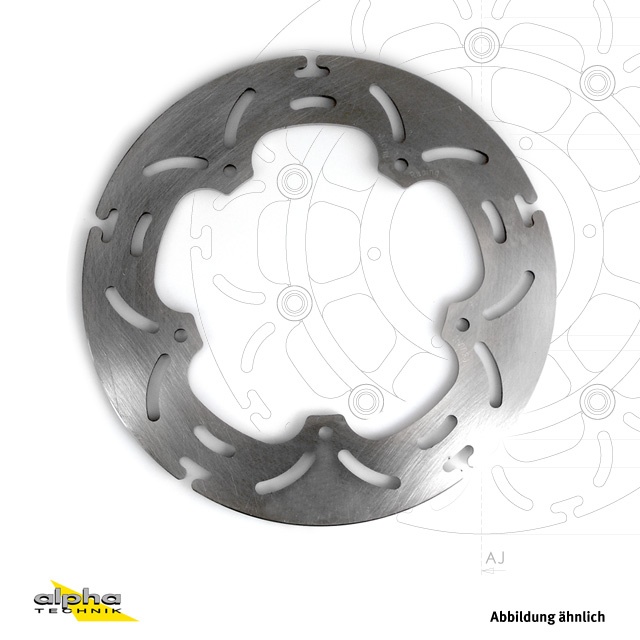

alpha Technik brake disc ABD33 rigid
ABE
Product Details
alpha Technik brake disc ABD33 rigid (OD=220 mm, ID=106.3 mm, PCD=125 mm), perforated steel outer ring, with ABEGeneral Description
aBD³³Developed for the toughest conditions in racing, tested for durability in the IDM, and now available to you: the alpha Technik brake disc “aBD³³” – naturally with ABE.
The appearance is more than just design. The perforations in the friction ring are specifically designed. The overlapping of the openings ensures continuous cleaning of the contact surface between the brake pad and the brake disc. This prevents dirt accumulation and optimises the venting of outgassing brake pads. The brake pad lies evenly and flat on the friction ring throughout the entire rotational movement. The contact surface also remains constant.
This is made possible by the geometry and alignment of the ventilation openings. The consistent contact prevents one-sided wear of the brake pad, even under extreme stress. The harmonious loading of the lining prevents premature wear.
The result is clear feedback to the rider, making the braking process more transparent and calculable, thereby boosting confidence in one's own brake system.
Features:
- Full Floating washer*
- Outer ring made of special steel
- Planar parallel ground finish
- CNC-machined aluminium inner ring
- Optimal friction coefficients
- Even wear
- Long service life
- With ABE
*Full Floating washer depending on the vehicle (refer to item description!)
| Bolt circle diameter in mm: | 125 |
|---|---|
| Inner ring in mm: | 106,3 |
| Outer diameter in mm: | 200 |
| Manufacturer | Model | Additional Designation | Type | Model Year | Note | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|---|---|
| Yamaha | MT10 | SP | RN45 EURO4 | 2017 - | ABE | rear | 1000 | 1 | |
| Yamaha | MT10 | RN45 EURO4 | 2016 - | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 | RN12 | 2004 - 2006 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 | SP | RN12 | 2006 - 2006 | ABE | rear | 1000 | 1 | |
| Yamaha | YZF-R1 | RN19 | 2007 - 2008 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 | RN22 | 2009 - 2011 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 | RN22 | 2012 - 2014 | with Traction Control | ABE | rear | 1000 | 1 | |
| Yamaha | YZF-R1 | RN32 | 2015 - 2016 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 | RN49 EURO4 | 2017 - 2019 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 M | RN32 | 2015 - 2016 | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R1 M | RN49 EURO4 | 2017 - | ABE | rear | 1000 | 1 | ||
| Yamaha | YZF-R6 | Race | ohne | 2021 - | rear | 600 | 1 | ||
| Yamaha | YZF-R6 | RJ05 | 2003 - 2004 | ABE | rear | 600 | 1 | ||
| Yamaha | YZF-R6 | RJ09 | 2005 - 2006 | ABE | rear | 600 | 1 | ||
| Yamaha | YZF-R6 | RJ11 | 2006 - 2007 | ABE | rear | 600 | 1 | ||
| Yamaha | YZF-R6 | RJ15 | 2008 - 2016 | ABE | rear | 600 | 1 | ||
| Yamaha | YZF-R6 | S | RJ15 | 2007 - 2007 | ABE | rear | 600 | 1 | |
| Yamaha | YZF-R6 | RJ27 EURO4 | 2017 - | ABE | rear | 600 | 1 |
