alpha Technik brake disc ABD33 rear for various Yamaha models
%
€99.00 gross €139.00 RRP incl. VAT
Article number:
ABD-170280
Product details

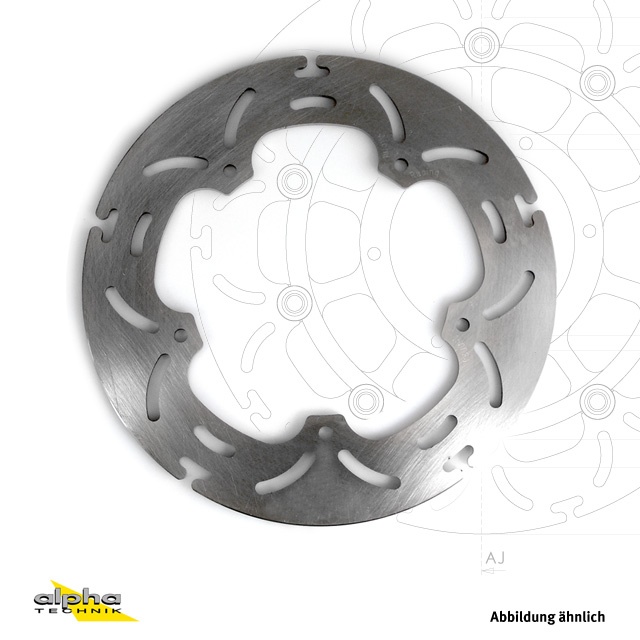

alpha Technik brake disc ABD33 (Outer diameter=245 mm, Inner diameter=105.3 mm, Bolt circle=125 mm), rear, perforated steel outer ring, with ABE.General description
aBD³³Developed for the toughest racing conditions, tested for durability in the IDM, and now available to you: the alpha Technik brake disc "aBD³³" – naturally with ABE.
The appearance is more than just mere design. The perforations in the friction ring are specifically designed. The overlapping openings ensure continuous cleaning of the contact surface between brake pad and brake disc. This prevents dirt accumulation and optimises the venting of outgassing brake pads. The brake pad lies evenly and flat on the friction ring throughout the entire rotational movement. Similarly, the contact surface remains constant.
This is made possible by the geometry and alignment of the ventilation openings. The uniform contact prevents one-sided wear of the brake pad, even under extreme loads. The harmonious stressing of the lining prevents premature wear.
The result is clear feedback to the rider; the braking process becomes more transparent and predictable, thereby fostering confidence in one's own brake system.
Features:
- Full Floating washer*
- Outer ring made of special steel
- Plane-parallel grinding
- Aluminium inner ring, CNC-milled
- Optimal friction values
- Even wear
- Long service life
- With ABE
*Full Floating washer depending on the vehicle (note item description!)
| Bolt circle diameter in mm: | 125 |
|---|---|
| Inner ring in mm: | 105,3 |
| Outer diameter in mm: | 245 |
| Manufacturer | Model | Type | Model year | Note | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|---|
| Yamaha | FZ1 | RN16 | 2006 - 2016 | with and without ABS | ABE | rear | 1000 | 1 |
| Yamaha | FZ1 Fazer | RN16 | 2006 - 2016 | with and without ABS | ABE | rear | 1000 | 1 |
| Yamaha | FZ6 | RJ07 | 2004 - 2007 | with and without ABS | ABE | rear | 600 | 1 |
| Yamaha | FZ6 | RJ14 | 2007 - 2010 | with and without ABS | ABE | rear | 600 | 1 |
| Yamaha | FZ6 Fazer | RJ07 | 2004 - 2007 | with and without ABS | ABE | rear | 600 | 1 |
| Yamaha | FZ6 Fazer | RJ14 | 2007 - 2010 | with and without ABS | ABE | rear | 600 | 1 |
| Yamaha | FZ6 Fazer S2 | RJ14 | 2007 - 2010 | with and without ABS | ABE | rear | 600 | 1 |
| Yamaha | MT03 | RM02 | 2006 - 2012 | ABE | rear | 660 | 1 | |
| Yamaha | TDM900 | RN18 | 2012 - 2012 | ABE | rear | 900 | 1 |
