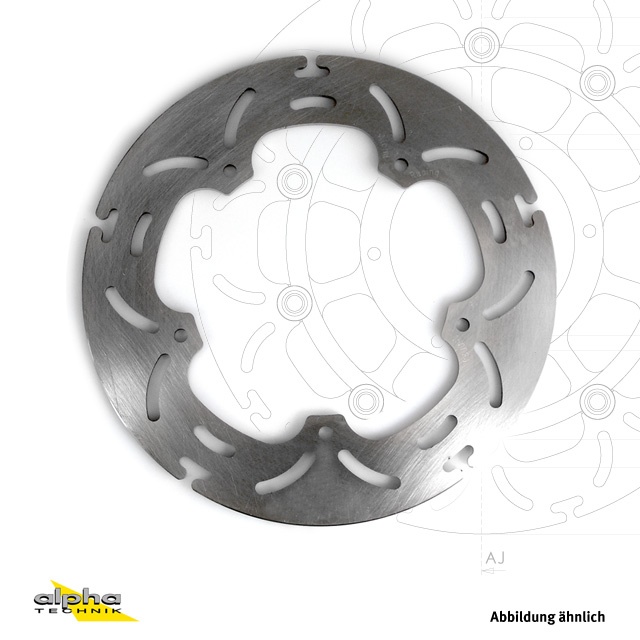

alpha Technik brake disc ABD33 rear for various Suzuki models
%
€99.00 gross €139.00 RRP incl. VAT
Article number:
ABD-170181
Product Details
alpha Technik brake disc ABD33 (OD=240 mm, ID=89.8 mm, bolt circle=110 mm), rear, perforated steel outer ring, with ABEGeneral Description
aBD³³Developed for the toughest racing conditions, tested for durability in the IDM, and now available to you: the alpha Technik brake disc "aBD³³" – naturally with ABE.
The appearance is more than just design. The perforations in the friction ring are specifically designed. The overlap of the openings ensures continuous cleaning of the contact surface between the brake pad and the brake disc. This prevents dirt accumulation and optimises the venting of outgassing brake pads. The brake pad lies evenly and flat on the friction ring throughout the entire rotational movement. The contact surface also remains constant.
This is made possible by the geometry and alignment of the ventilation openings. The consistent contact prevents one-sided wear of the brake pad, even under extreme load. The harmonious loading of the lining prevents premature wear.
The result is clear feedback to the rider, the braking process becomes more transparent and predictable, thus promoting confidence in one's own brake system.
Features:
- Full Floating washer*
- Special steel outer ring
- Plane-parallel grinding
- Aluminium inner ring, CNC-milled
- Optimal friction coefficients
- Even wear
- Long service life
- With ABE
*Full Floating washer depending on the vehicle (please refer to the product name!)
| Bolt circle diameter in mm: | 110 |
|---|---|
| Inner diameter in mm: | 89.5 |
| Outer diameter in mm: | 240 |
| Width in mm: | 5 |
| Manufacturer | Model | Additional designation | Type | Model Year | Variant/Version | Note | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|---|---|---|
| Suzuki | GSF1200 Bandit | GV75A | 1995 - 2000 | ABE | rear | 1200 | 1 | |||
| Suzuki | GSF1200 Bandit | WVA9 | 2001 - 2005 | ABE | rear | 1200 | 1 | |||
| Suzuki | GSF600 Bandit | GN77B | 1995 - 1999 | ABE | rear | 600 | 1 | |||
| Suzuki | GSF600 Bandit | WVA8 | 2000 - 2004 | ABE | rear | 600 | 1 | |||
| Suzuki | GSF650 Bandit | WVB5 | 2005 - 2006 | without ABS | ABE | rear | 650 | 1 | ||
| Suzuki | GSF650 Bandit S | WVCJ | 2007 - 2007 | without ABS | ABE | rear | 650 | 1 | ||
| Suzuki | GSF650 Bandit S | WVCJ | 2007 - 2007 | without ABS | with ABS | ABE | rear | 650 | 1 | |
| Suzuki | GSX1200 | A3 | 1999 - 2002 | ABE | rear | 1200 | 1 | |||
| Suzuki | GSX1300R Hayabusa | WVA1 | 1999 - 2007 | ABE | rear | 1300 | 1 | |||
| Suzuki | GSX600F | AJ | 1998 - 2002 | ABE | rear | 600 | 1 | |||
| Suzuki | GSX750F | AK | 1999 - 2002 | ABE | rear | 750 | 1 | |||
| Suzuki | GSX750F | GR78A | 1989 - 1997 | ABE | rear | 750 | 1 | |||
| Suzuki | GSX-R1100 | GV72C | 1989 - 1992 | K - N | ABE | rear | 1100 | 1 | ||
| Suzuki | GSX-R1100 | GV73C | 1997 - 1998 | WV - WW | ABE | rear | 1100 | 1 | ||
| Suzuki | GSX-R1100W | GU75C | 1993 - 1996 | WP - WT | ABE | rear | 1100 | 1 | ||
| Suzuki | GSX-R750 | GR77B | 1989 - 1989 | ABE | rear | 750 | 1 | |||
| Suzuki | GSX-R750 | Limited Edition | GR79B | 1989 - 1990 | ABE | rear | 750 | 1 | ||
| Suzuki | GSX-R750 | GR7AB | 1990 - 1991 | ABE | rear | 750 | 1 | |||
| Suzuki | GSX-R750W | GR7BB | 1992 - 1995 | ABE | rear | 750 | 1 | |||
| Suzuki | RF600R | GN76B | 1993 - 1997 | ABE | rear | 600 | 1 | |||
| Suzuki | RF900R | GT73B | 1994 - 1998 | ABE | rear | 900 | 1 | |||
| Suzuki | SV650 | AV | 1999 - 2002 | ABE | rear | 650 | 1 | |||
| Suzuki | SV650 | S | AV | 1999 - 2002 | ABE | rear | 650 | 1 |
