alpha Technik brake disc ABD33 rear for various Ducati Models
ABE
€65.50 gross €139.00 UVP brutto
Product number:
ABD-170211
Product details

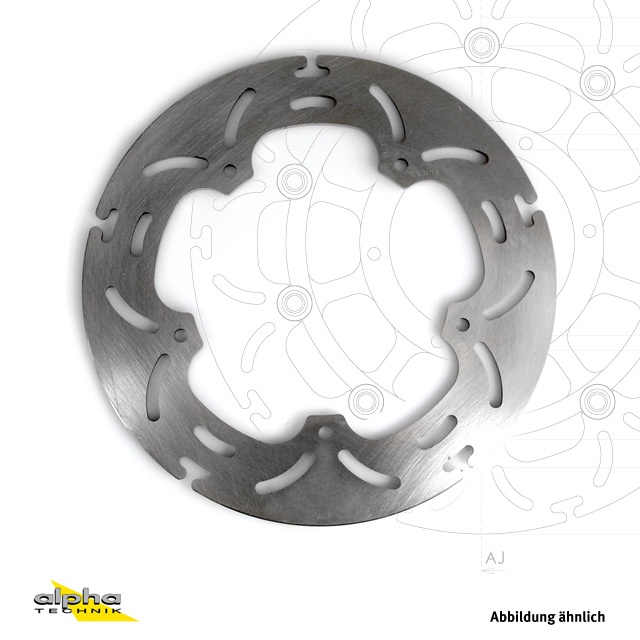

alpha Technik brake disc ABD33 (OD=220 mm, ID=108.3 mm, PCD=125 mm), rear, perforated steel outer ring, with ABEGeneral description
aBD³³Developed for the toughest racing conditions, tested for durability in the IDM, and now available for you: the alpha Technik brake disc "aBD³³" – naturally with ABE.
The appearance is more than just design. The perforations in the friction ring are specifically designed. The overlap of the openings ensures continuous cleaning of the contact surface between the brake pad and brake disc. This prevents dirt accumulation and optimises the venting of outgassing brake pads. The brake pad rests evenly and flat against the friction ring throughout the entire rotational movement. Likewise, the contact area remains constant.
This is made possible by the geometry and alignment of the ventilation openings. The uniform contact prevents one-sided wear of the brake pad, even under extreme loads. Harmonious stress on the lining prevents premature wear.
The result is clear feedback to the rider; the braking process becomes more transparent and predictable, thereby fostering confidence in one's own brake system.
Features:
- Full Floating washer*
- Outer ring made of special steel
- Planar parallel ground finish
- Aluminium inner ring, CNC-milled
- Optimal friction values
- Even wear
- Long service life
- With ABE
*Full Floating washer depends on the vehicle (please note the product name!)
| Bolt circle diameter in mm: | 125 |
|---|---|
| Inner ring in mm: | 108,3 |
| Outer diameter in mm: | 220 |
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm | Number of brake discs |
|---|---|---|---|---|---|---|---|
| Ducati | 748 Biposto | H3 | 1997 - 2003 | ABE | rear | 748 | 1 |
| Ducati | 748R | ZDM748S | 2000 - 2002 | ABE | rear | 748 | 1 |
| Ducati | 748S | H3 | 2000 - 2002 | ABE | rear | 748 | 1 |
| Ducati | 748SP | 748 | 1997 - 1997 | ABE | rear | 748 | 1 |
| Ducati | 748SPS | 748 | 1998 - 1999 | ABE | rear | 748 | 1 |
| Ducati | 916 Racing | 916 | 1994 - 1997 | ABE | rear | 916 | 1 |
| Ducati | 916 SP | ZDM916S | 1994 - 1997 | ABE | rear | 916 | 1 |
| Ducati | 916 SPS | ZDM916S | 1997 - 1998 | ABE | rear | 916 | 1 |
| Ducati | 916 Strada | ZDM916S | 1997 - 1998 | ABE | rear | 916 | 1 |
| Ducati | 996R | H2 | 2001 - 2001 | ABE | rear | 996 | 1 |
| Ducati | 996S | H4 | 2001 - 2001 | ABE | rear | 996 | 1 |
| Ducati | 996SPS | H2 | 1999 - 2000 | ABE | rear | 996 | 1 |
| Ducati | 998 Biposto | H4 | 2002 - 2003 | ABE | rear | 998 | 1 |
| Ducati | 998R | H2 | 2002 - 2003 | ABE | rear | 998 | 1 |
| Ducati | 998S | H4 | 2002 - 2003 | ABE | rear | 998 | 1 |
