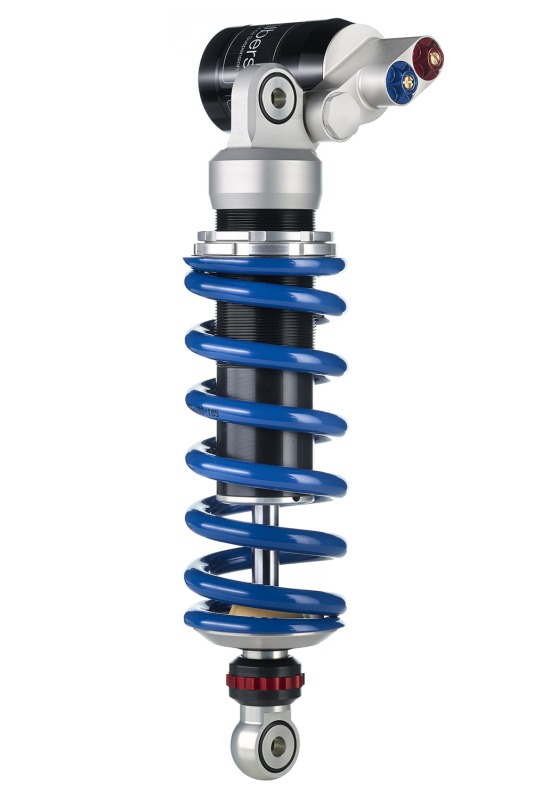

Wilbers shock absorber 643 Adjustline for Suzuki GSX-R 600 04-

Product details

Wilbers Performance Suspension Adjustline 643 Competition P, mono-shock absorber rear, adjustable rebound and compression damping as well as spring preload, piggyback reservoir positioned horizontally (for direction of travel) and pivotable (before delivery or before mounting the shock absorber), for Suzuki GSX-R 600, type WVB 2, model year 04-, with ABE according to scope of use.

General description

Adjustline Ø 46 mm – the robust ones: equipped with a 46 mm piston, they are able to withstand all impacts, are multi-adjustable, and available in various versions. A strong alternative!

Adjustline 643 P Competition
The mounting for the pressure reservoir is made from solid aluminium and houses the adjustment units for high- and low-speed compression damping. Hydraulic blocking and impacts to the chassis are prevented by a pressure relief valve. The shock absorber is fully adjustable with 22 clicks each for high-speed, low-speed, and rebound. The spring preload can be continuously modified mechanically or even hydraulic. Best materials ensure long service life and reliability. Damping and spring are, as always, selected according to rider data!

Features:
- 22-click adjustable low-speed compression damping damping
- 22-click adjustable high-speed compression damping damping
- Stepless spring preload using the included hook wrench
- 22-click adjustable rebound damping

Additional information and notes:

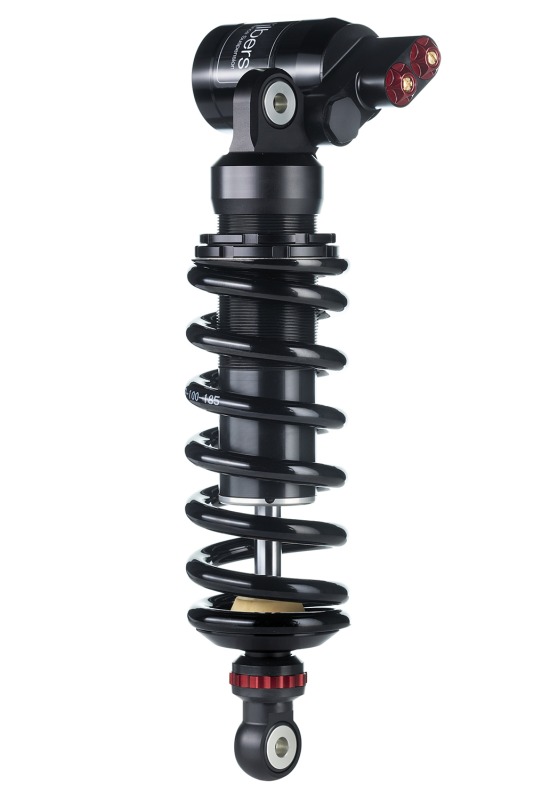

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are anodised matt black in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are anodised red. For surcharge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- During the order process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
