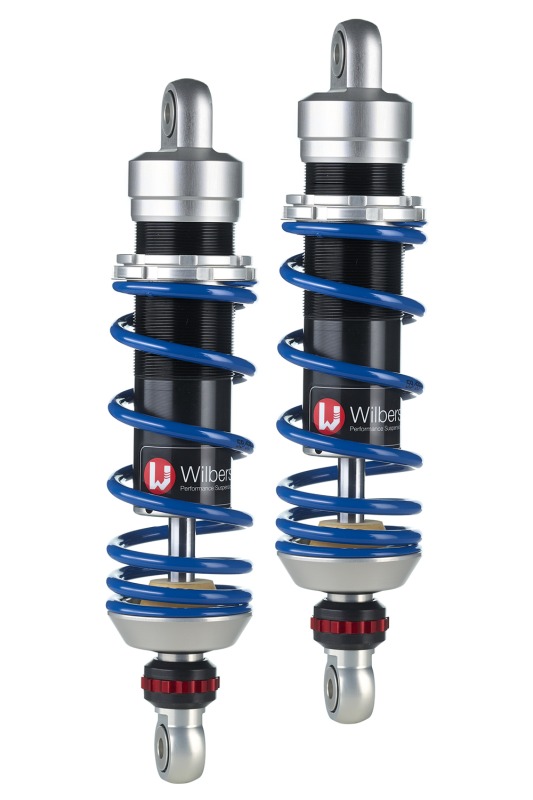

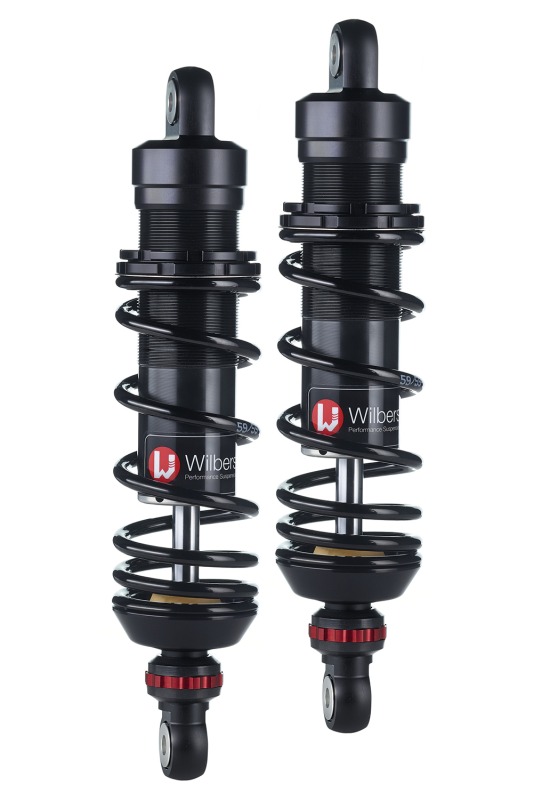

Wilbers shock absorber 640 Adjustline for Harley Davidson FXDL Dyna Low Rider, 2014-17

Product details

Wilbers Performance Suspension 640 Adjustline, Wilbers Standard = 20 mm ride height increase, otherwise minimal suspension travel. Stereo shock absorbers rear (set), rebound and spring preload adjustable, with ABE according to application range.
For Harley Davidson FXDL Dyna Low Rider, Type FD2, Model Year 2014-17

General Description

Adjustline Ø 46 mm – the robust ones: Equipped with a 46 mm piston, they can withstand all impacts, are multi-adjustable and available in various versions. A strong alternative!

Adjustline 640
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the absence of the external balance tank and the adjustment options for the compression damping. It makes no compromises in terms of responsiveness and durability. Radial pistons, wet-running guides, PTFE-guided spherical bearings and other features redefine the standard for a basic shock absorber here. Of course, the spring preload is continuously adjustable and the rebound damping can be set over an extremely wide range with 22 clicks via an open bleed system. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge (please specify colour during the order process)
- Also available in various lengths for ride height increase or lowering: Please enquire about lengths
- During the order process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (Touring/sporty), intended use (race track/street/off-road)
